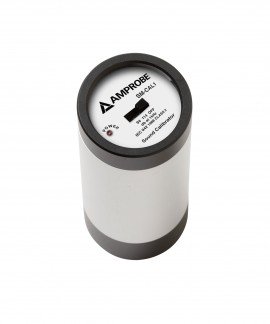

The sound meter calibrator generates levels of 94 and 114 dB for the calibration of sound level meters. The unit comes with a ½” adapter installed to accommodate sound meters and microphones.
The sound meter calibrator generates levels of 94 and 114 dB for the calibration of sound level meters. The unit comes with a ½” adapter installed to accommodate sound meters and microphones.
Features
| Electrical (Sound) | |
| Output Sound Level | 94 and 114 dB re 20 uPa under reference |
| Accuracy | ± 0.5 dB |
| Output Frequency | 1 kHz ± 4 % |
| Temperature and Humidity | |
| Operation | 32 to 104°F (0 to 40°C), 10 to 70% RH |
| Storage | 14 to 140°F (-10 to 60°C), 10 to 90% RH |
| General Specifications | |
| Battery | 9V, 006P or IEC 6F22 or NEDA 1604 |
| Battery Life | Approximately 20 hours (alkaline battery) |
| Enviromental | Indoor operation; Altitude up to 2000 meters; Atmospheric Pressure: 1013 mbar |
| Dimensions | 1.9 x 4.9" (48 x 125 mm) |
| Weight | 0.6 lbs (285 g) including battery |
