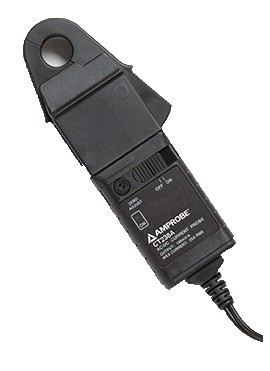

The amp clamp is for use with standard DMMs, recorders, digital or analog meters, data loggers/DAS, oscilloscopes, or other test and measurement instruments. It measures AC or DC and converts high current to a low-level millivolt signal for input directly into a test instrument.
The amp clamp is for use with standard DMMs, recorders, digital or analog meters, data loggers/DAS, oscilloscopes, or other test and measurement instruments. It measures AC or DC and converts high current to a low-level millivolt signal for input directly into a test instrument.
Discontinué!
Ce produit a été discontinué et n’est plus disponible.
Il n’y a pas de remplacement direct, mais nous vous recommandons:
Vous ne trouvez pas ce que vous cherchez? Nous ferons une recherche et vous aiderons à trouver ce dont vous avez besoin.
Caractéristiques
| DC Current | Range: 20 A maximum Accuracy: ±(1% of rdg + 2 mA) |
| Meter Input Impedance | 10 k&Ohm; minute and 100 pF maximum |
| Division Ratio | 10 to 1 |
| Output | 1 A DC at jaws = 100 mV DC to meter |
| DC–10 kHz | Range: 20 A Accuracy: 20 A (< 1 kHz): ± (1 % of rdg + 2 mA) |
| Meter Input Impedance | 10 k&Ohm; minimum and 100 pF maximum |
| Division Ratio | 10 to 1 |
| Output | 1 A AC at jaws = 100 mV AC to meter |
| Maximum Conductor Size | 0.75" (19 mm) |
| Lead Length | 59" (1.5 m) |
| Temperature | Operating: 32 to 122°F (0 to 50°C) at < 80 % R.H.<br> Storage: -4 to 185°F (–20 to 85°C) Coefficient: 0.1 % of rdg per 50°F (10°C) |
| Dimensions | 2.2 x 8.3 x 1.2" (55 x 210 x 30 mm) |
| Weight | 0.64 lbs (290 g) |
| DC Current | Range: 20 A maximum Accuracy: ±(1% of rdg + 2 mA) |
| Meter Input Impedance | 10 k&Ohm; minute and 100 pF maximum |
| Division Ratio | 10 to 1 |
| Output | 1 A DC at jaws = 100 mV DC to meter |
| DC–10 kHz | Range: 20 A Accuracy: 20 A (< 1 kHz): ± (1 % of rdg + 2 mA) |
| Meter Input Impedance | 10 k&Ohm; minimum and 100 pF maximum |
| Division Ratio | 10 to 1 |
| Output | 1 A AC at jaws = 100 mV AC to meter |
| Maximum Conductor Size | 0.75" (19 mm) |
| Lead Length | 59" (1.5 m) |
| Temperature | Operating: 32 to 122°F (0 to 50°C) at < 80 % R.H.<br> Storage: -4 to 185°F (–20 to 85°C) Coefficient: 0.1 % of rdg per 50°F (10°C) |
| Dimensions | 2.2 x 8.3 x 1.2" (55 x 210 x 30 mm) |
| Weight | 0.64 lbs (290 g) |
