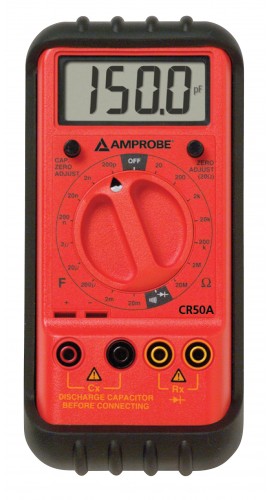

Digital capacitance and resistance tester checks functionality and compatibility of electrical circuits and devices in home and industrial maintenance applications. When set to the low resistance or low capacitance ranges, the unit's zero-adjust pots help eliminate stray resistance and capacitance for more accurate readings.
Digital capacitance and resistance tester checks functionality and compatibility of electrical circuits and devices in home and industrial maintenance applications. When set to the low resistance or low capacitance ranges, the unit's zero-adjust pots help eliminate stray resistance and capacitance for more accurate readings.
Discontinué!
Ce produit a été discontinué et n’est plus disponible.
Voici le produit de remplacement direct :
Caractéristiques
| Display Update Rate | 2/sec, nominal |
| Power | Standard 9 V transistor battery |
| Battery Life | Alkaline 200 hours |
| Operating Temperature | 32°F to 122°F (0°C to 50°C), <70 % R.H. |
| Resistance | |
| Range | 20 Ω, 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ, 20 MΩ |
| Accuracy | ± 2 % rdg (Zero Adjust) ± (1.0 % rdg + 3 dgts) ± (1.2 %rdg + 2 dgts) ± (3.0 %rdg + 1 dgt) |
| Capacitance | |
| Range | 200 pF, 2000 pF, 2 μF, 20 μF, 200 μF, 2 mF, 20 mF |
| Accuracy | ± (0.5 % rdg + 1 dgt+0.5 pF) ± (0.5 % rdg + 1 dgt) ± (l.0 % rdg + 1 dgt) ± (l.5 % rdg + 1 dgt) |
| Diode Test | |
| Test Current | 1 mA (approx.) |
| Test Voltage | 3.2 VDC |
| Display | Forward junction voltage |
| Overload Protection | |
| Resistance | 500 VDC or AC RMS |
| Capacitance | 0.1 A/250 V fast acting fuse |
| Continuity | 500 VDC or AC RMS |
