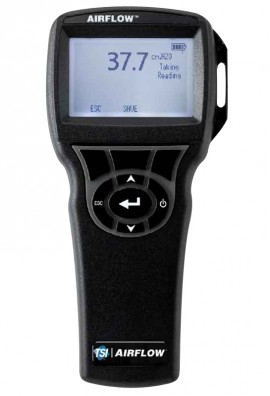

With its compact and rugged design, this comprehensive micromanometer is ideal for pressure measurements. With the pitot tubes, the unit can measure velocity and also calculate flow rates with user–input duct size and shape.
Features
Applications
| Static/Differential Pressure | Range: -15 to 15 inH2O (-28 to 28 mmHg, -3735 to 3735 Pa) Accuracy: ±1% of reading ±0.005 inH2O (±1 Pa, ±0.01 mmHg) Resolution: 0.001 inH2O (0.1 Pa, 0.01 mmHg) |
| Velocity From a Pitot Tube | Range: 250 to 15,500 ft/min (1.27 to 78.7 m/s) Accuracy: ±1.5% at 2000 ft/min (10.16 m/s) Resolution: 1 ft/min (0.1 m/s) |
| Duct Size Dimensions | 1 to 250” in increments of 0.1” (1 to 635 cm in increments of 0.1 cm) |
| Volumetric Flow Rate | Actual range is a function of velocity, pressure, duct size, and K factor |
| Temperature Range | Operating: 40 to 113°F (5 to 45°C) Storage: -4 to 140°F (-20 to 60°C) |
| Data Storage Capabilities | 12,700+ samples and 100 test IDs |
| Logging Interval | 1 second to 1 hour |
| Time Constant | User selectable |
| Power Requirement | 4 x AA-size batteries or AC adapter |
| Dimensions | 3.3 x 7.0 x 1.8” (8.4 x 17.8 x 4.4 cm) |
| Weight | 0.6 lbs (0.27 kg) |
| Static/Differential Pressure | Range: -15 to 15 inH2O (-28 to 28 mmHg, -3735 to 3735 Pa) Accuracy: ±1% of reading ±0.005 inH2O (±1 Pa, ±0.01 mmHg) Resolution: 0.001 inH2O (0.1 Pa, 0.01 mmHg) |
| Velocity From a Pitot Tube | Range: 250 to 15,500 ft/min (1.27 to 78.7 m/s) Accuracy: ±1.5% at 2000 ft/min (10.16 m/s) Resolution: 1 ft/min (0.1 m/s) |
| Duct Size Dimensions | 1 to 250” in increments of 0.1” (1 to 635 cm in increments of 0.1 cm) |
| Volumetric Flow Rate | Actual range is a function of velocity, pressure, duct size, and K factor |
| Temperature Range | Operating: 40 to 113°F (5 to 45°C) Storage: -4 to 140°F (-20 to 60°C) |
| Data Storage Capabilities | 12,700+ samples and 100 test IDs |
| Logging Interval | 1 second to 1 hour |
| Time Constant | User selectable |
| Power Requirement | 4 x AA-size batteries or AC adapter |
| Dimensions | 3.3 x 7.0 x 1.8” (8.4 x 17.8 x 4.4 cm) |
| Weight | 0.6 lbs (0.27 kg) |
