Use this combo tester to test your wrist straps and heel grounders at the same time or individually, so you can assess their electrical resistance.
Use this combo tester to test your wrist straps and heel grounders at the same time or individually, so you can assess their electrical resistance.

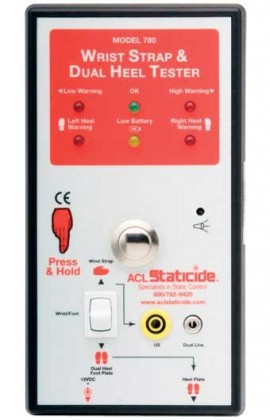

When you don't need to record data by hooking up your tester to a computer, use this Staticide ACL 780 Economy Combo Tester, which makes it easy to measure the electrical resistance of a wrist strap and heel grounder at the same time or separately. You can adjust the measurement limits from 500 to 750 kΩ on the low setting and from 2 to 100 MΩ on the high setting to suit your specific needs.
Caractéristiques
| Resistance Range | Low: 500 and 750 kΩ High: 2, 5, 10, 25, 35, 50, 75 and 100 MΩ |
| Test Voltage | 19 VDC ± 1 V (open circuit) |
| Power Supply | 9 V battery (included) or 12 V DC adapter |
| Display | Red and green LEDs, high dB buzzer |
| Resistance Range | Low: 500 and 750 kΩ High: 2, 5, 10, 25, 35, 50, 75 and 100 MΩ |
| Test Voltage | 19 VDC ± 1 V (open circuit) |
| Power Supply | 9 V battery (included) or 12 V DC adapter |
| Display | Red and green LEDs, high dB buzzer |
