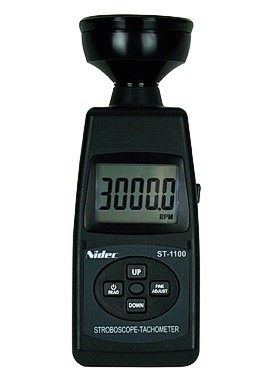

Ideal for rotational machine inspection, this stroboscope features LED flash technology and analyzes/measures velocity with a range of 60 to 40,000 rpm. In addition, it is adjustable in coarse/fine step flash-rate tuning, and the backlit display shows the current and ten user-stored pre-set flash rates and a low battery warning.
Ideal for rotational machine inspection, this stroboscope features LED flash technology and analyzes/measures velocity with a range of 60 to 40,000 rpm. In addition, it is adjustable in coarse/fine step flash-rate tuning, and the backlit display shows the current and ten user-stored pre-set flash rates and a low battery warning.
Capable of flashing the light in sync with the operating machinery frequency, this stroboscope creates the illusion of viewing stopped or slowed images. Inspect machine parts and processes for defects using the phenomenon of slowing or stopping the motion with the adjusted rate of the flashing light and record the rotational speed of the machinery and systems for further performance analysis. In addition, switch off the backlit feature to save battery life if desired, and the LED technology extends operation due to the low energy requirement of the light diodes compared with xenon stroboscopes.
Features
Applications
| Range | 60 to 40,000 flash rate per minute (rpm) |
| Accuracy | ±0.05% F.S. |
| Lux Rating | 950 lux at 3000 fpm and 3.9" (10 cm) 600 lux at 3000 fpm and 7.9" (20 cm) 370 lux at 3000 fpm and 11.8" (30 cm) |
| Resolution | <400: 0.01 rpm <4000: 0.1 rpm <40,000: 1 rpm |
| Display | 5 digits with backlight |
| Rate Storage | 10 stored user-defined flash rates Factory defaults: (rpm): 200, 400, 1000, 2000, 3000, 4000, 10,000, 20,000, 30,000, 40,000 |
| Power Supply | 4 x 3.7 V AA lithium-ion rechargeable batteries |
| Battery Life | Approximately 20 hours |
| Housing | ABS plastic |
| Dimensions | 7.7 x 2.9 x 1.5" (195 x 73 x 38 mm) |
| Weight | Approximately 7.8 oz (220 g) |
