When joined with an optional Sunbright® sunlight-readable LED (sold separately), this 4-relay process meter displays signals on a dual-line, 6-digit display. The process meter is equipped with an 85 to 265VAC operating range and a 4 to 20mA output.
When joined with an optional Sunbright® sunlight-readable LED (sold separately), this 4-relay process meter displays signals on a dual-line, 6-digit display. The process meter is equipped with an 85 to 265VAC operating range and a 4 to 20mA output.
Boasts specifications and functionality that clearly make it one of the most advanced process meters available.
Features
Applications
| Product Type | 1/8 DIN Process Digital Panel Meter |
| Inputs | Current (4 to 20mA), Voltage (0 to 10V) |
| Display | SunBright, 0.6in (15.24mm), Dual Line, 6 Digits, Red LED |
| Power | 85 to 265VAC, 90 to 265VDC |
| Outputs | 4 Relays & 4 to 20mA Output |
| Transmitter Power | 24VDC at 200mA + 24VDC at 40mA |
| Approvals | CE, UL/C-UL |
| Warranty | 3 years |
| Dimensions | 4.68 x 2.45 x 5.64in (119 x 62 x 143mm) (W x H x D) |
| Weight | 9.5oz (269g) |

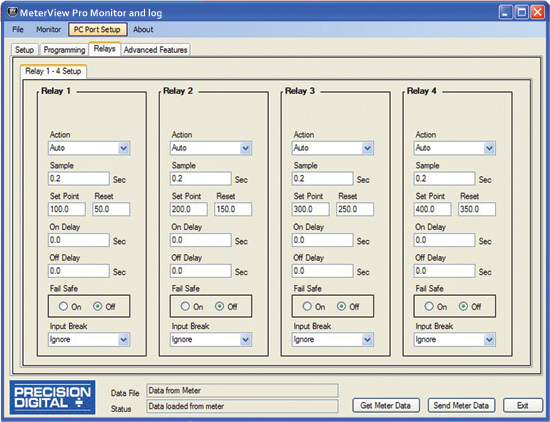

MeterView® Pro software is designed for use with ProVu meters and allows users to remotely program, monitor, and datalog using a PC. Remote programming allows for all available meter settings to be programmed through an easy, user-friendly interface. The data acquisition feature allows the user to gather readings from a meter at user-selected intervals and generate charts using common tools like Microsoft® Excel. A linearization setup function is also included. With this utility the user can configure up to 32 linearization points and upload them to the meter. All configuration data can be saved to a file for future use.
This software is accessible via the onboard USB connection on all ProVu panel meters produced since 6 September 2016 (firmware version 4.0 or higher). For an RS-232 connection, use a PDA1232 adapter.
| Product Type | 1/8 DIN Process Digital Panel Meter |
| Inputs | Current (4 to 20mA), Voltage (0 to 10V) |
| Display | SunBright, 0.6in (15.24mm), Dual Line, 6 Digits, Red LED |
| Power | 85 to 265VAC, 90 to 265VDC |
| Outputs | 4 Relays & 4 to 20mA Output |
| Transmitter Power | 24VDC at 200mA + 24VDC at 40mA |
| Approvals | CE, UL/C-UL |
| Warranty | 3 years |
| Dimensions | 4.68 x 2.45 x 5.64in (119 x 62 x 143mm) (W x H x D) |
| Weight | 9.5oz (269g) |
MeterView® Pro software is designed for use with ProVu meters and allows users to remotely program, monitor, and datalog using a PC. Remote programming allows for all available meter settings to be programmed through an easy, user-friendly interface. The data acquisition feature allows the user to gather readings from a meter at user-selected intervals and generate charts using common tools like Microsoft® Excel. A linearization setup function is also included. With this utility the user can configure up to 32 linearization points and upload them to the meter. All configuration data can be saved to a file for future use.
This software is accessible via the onboard USB connection on all ProVu panel meters produced since 6 September 2016 (firmware version 4.0 or higher). For an RS-232 connection, use a PDA1232 adapter.
