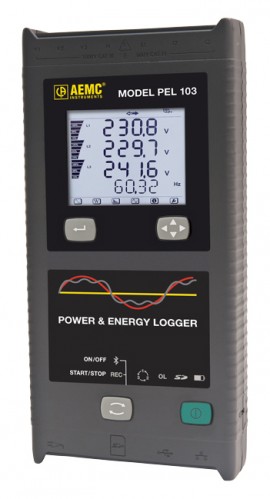

Ideal for system monitoring, this single, dual (split-phase), and three-phase power/energy data logger accurately measures, records, and analyzes vital energy data. Moreover, this data logger kit includes LCD, 3 x 10" (25.4 cm) sensors, USB cables, 4 x black test leads and alligator clips, 12 x color-coded ID markers, and more.
Ideal for system monitoring, this single, dual (split-phase), and three-phase power/energy data logger accurately measures, records, and analyzes vital energy data. Moreover, this data logger kit includes LCD, 3 x 10" (25.4 cm) sensors, USB cables, 4 x black test leads and alligator clips, 12 x color-coded ID markers, and more.
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
Energy costs can be calculated and displayed quickly and easily by simply inputting the unit cost for a kilowatt hour into the software. Data is stored on a removable SD card. Data can be retrieved using a USB, Bluetooth and/or Ethernet (local or internet) connection by transporting the SD card back to a PC. The comprehensive DataView®software (included) provides the ability to view data from several hundred PEL 100 series instruments on a local network or over the internet allowing the user to evaluate energy usage in a department or facility basis, a remote site, or even in a city, anywhere in the world. DataView®allows measurements to be viewed in real-time on a PC and stored data to be downloaded for analysis and report generation.
Features
Applications
| General | |
| Sampling Frequency | 128 samples per cycle; 50/60Hz (16 samples/cycle 400Hz) |
| Data Storage Rate | 1 per second |
| Demand Period Storage Rate | User selectable (1, 2, 3, 4, 5, 6, 10, 12, 15, 20, 30 and 60 minutes) |
| Recorded Parameters (Single- and Poly-Phase) | V, I, W, VA, var, PF, Tan, Wh, Vah, varh, THD (V and I) Individual harmonics (from 1 through 50 per phase); Crest Factor (CF), Cos f/DPF |
| Event Log | Tracks and records status changes and error messages along with recorded data |
| Front Panel Indicator LEDs | Bluetooth active, recording in progress, phase connection reversal, overload, battery charging and SD Card status |
| Storage Capacity | 2GB SD card (included) is used for storage. SD cards (up to 2GB); SDHC cards (4 to 32GB) formatted FAT32 are supported |
| Inputs | Voltage: 3 voltage input channels via 4mm safety banana jacks Current: 3 current input channels via custom 4 pin jacks that accept AEMC® probes and sensors |
| Mechanical | |
| Communication Ports | USB 2.0, Ethernet (RJ45), Wireless Bluetooth Class |
| Case and Index of Protection | Double insulated, rubber over-molded, polycarbonate UL94 V1 rated IP54 non operating |
| Mounting and Security | Embedded magnets on back side, keyhole slot on back side Kensington anti-theft system |
| Safety Rating and CE Rating | Complies with IEC 61010-1:Ed3, and IEC 61010-2-030:Ed1 for 1000 V CAT III 600 V CAT IV, Pollution Degree 2, yes |
| Dimensions | 10.08 x 4.92 x 1.46" (256 x 125 x 37mm) |
| Weight | 2.2 lbs (1 kg) |
Click on a category to view a selection of compatible accessories with the AEMC PEL 103 Power/Energy Data Logger Kit with LCD and sensors.
