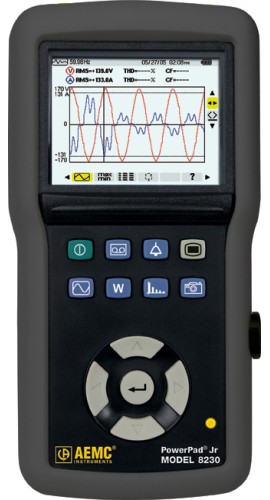

AEMC 8230 PowerPad Jr True RMS Power Quality Analyzer, Single Phase, 40 to 70Hz

Model: 8230 | Order No: 2130.81 | UPC: 685338220162

AEMC 8230 PowerPad Jr True RMS Power Quality Analyzer, Single Phase, 40 to 70Hz-

Downloads: datasheet manual

More AEMC Instruments Products

Ask an Expert

AEMC 8230 PowerPad Jr True RMS Power Quality Analyzer, Single Phase, 40 to 70Hz

Model: 8230 | Order No: 2130.81 | UPC: 685338220162

Single-phase power quality analyzer designed for electricians, facilities technicians and engineers to record power quality and carry out diagnostic work on electrical systems or devices. This model is stand-alone, CT's must be ordered separately.

Single-phase power quality analyzer designed for electricians, facilities technicians and engineers to record power quality and carry out diagnostic work on electrical systems or devices. This model is stand-alone, CT's must be ordered separately.

Discontinued!

This product has been discontinued and is no longer available.

There is no direct replacement, however we recommend the:

AEMC PEL 112 Power and Energy Logger without BK sensors-

AEMC PEL 112 Power and Energy Logger without BK sensors

Model: PEL 112 - w/o sensors | Order No: 2137.63

The PEL 112 is a cost-effective, easy-to-use power and energy data logger that supports single-phase, split-phase, and three-phase (Y, Δ) systems. Ideal for electricians, engineers, and contractors, it is perfect for building and system monitoring, upgrades, and energy audits. It accurately measures, records, and analyzes vital energy data, generating standard and customizable reports with minimal setup.

Learn More

AEMC PEL 113 Power and Energy Logger with BK sensors-

AEMC PEL 113 Power and Energy Logger with BK sensors

Model: PEL 113 | Order No: 2137.54

The PEL 113 is a cost-effective, easy-to-use power and energy data logger designed to simplify energy audits, system monitoring, and electrical upgrades. Delivering precise, real-time measurements for single-phase, split-phase, and three-phase electrical systems, it helps efficiency professionals, facility managers, and electrical engineers reduce costs, improve power quality, and optimize system performance.

Learn More

AEMC PEL 115 Power and Energy Logger without BK sensors-

AEMC PEL 115 Power and Energy Logger without BK sensors

Model: PEL 115 | Order No: 2137.56

The PEL 115 measures and records all power and energy parameters with precision. Built into a rugged, IP67-rated, all-terrain case, it's designed for demanding field use across multiple industries.

Learn More
