Built into a rugged mechanical case and is designed using quality polycarbonate materials. Measures 1ms peak function for fast capture of signals and frequency from V and A.
Built into a rugged mechanical case and is designed using quality polycarbonate materials. Measures 1ms peak function for fast capture of signals and frequency from V and A.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

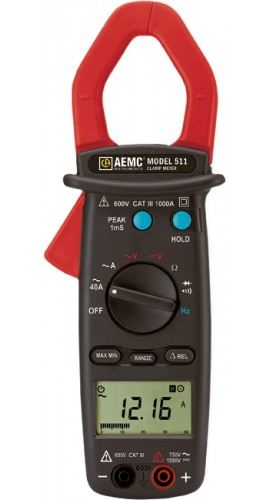

The AEMC 511 Clamp-on Meter is a general purpose professional clamp-on meter that measures up to the toughest standards. This meter offers a complete set of measurement ranges and is in compliance with international safety and quality standards to ensure a professional and reliable measuring tool. The Model 511 is auto-ranging and provides the best measurement range and resolution for troubleshooting. It has a high resolution 40A range.
The Model 511 measures AC Amps, AC Volts, DC Volts, Ohms, Continuity (with beeper), Frequency (from V or A) and has a Diode Test function.
The Model 511 is sized for a comfortable, one-handed operation. This model is average sensing and designed for traditional average responding electrical systems. The jaw opening for the Model 511 is 1.575" (40mm).
Features
Applications
| AC Current | |
| Range | 0.05A to 1000A |
| Resolution | 40A: 0.01A 400A: 0.1A; 1000A: 1A |
| Basic Accuracy | 50 to 500Hz: ±1.9% of Reading + 5cts |
| Frequency Range | 50 to 500Hz |
| Overload Protection | 40A: 800Arms 400A: 1500Arms 1000A: 1500Arms |
| AC Volts | |
| Input Range | 0.5V to 750V |
| Range | 400V / 750V |
| Resolution | 0.1V / 1V |
| Accuracy | ±1.2% of Reading + 5cts |
| Input Impedance | 10MW |
| Overload Protection | 1000Vrms |
| Frequency Current Input | |
| Range | 4kHz |
| Resolution | 1Hz |
| Minimum Input Signal | 2Arms |
| Accuracy | ±0.1% of Reading + 1ct |
| Frequency Voltage Input | |
| Range | 10kHz |
| Resolution | 10Hz |
| Minimum Input Signal | 5Vrms |
| Accuracy | ±0.1% of Reading + 1ct |
| DC Volts | |
| Range | 0.2 to 1000V |
| Resolution | 400V: 0.1V 1000V: 1V |
| Accuracy | ±0.75% of Reading + 2cts |
| Input Impedance | 10MW |
| Overload Protection | 1200Vrms |
| Continuity | |
| Range | Beeper |
| Measurement | <40W</td> |
| Max. Test Voltage | 3V DC |
| Overload Protection | 600Vrms |
| General Specifications | |
| Jaw Opening Size | 1.575" (40mm) |
| Battery | 9V, NEDA 1604 or 6F22 or 006P |
| Dimensions | 9.53 x 2.60 x 1.42" (242 x 66 x 36mm) |
| Weight | 14.10oz (400g) with batteries |
Click on a category to view a selection of compatible accessories with the AEMC 511 AC Clamp Meter with Hz, 1000A AC, 750V AC/1000V DC.
