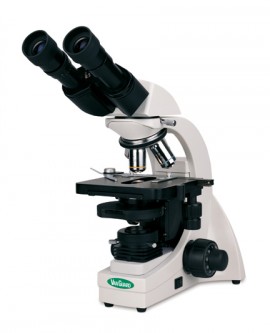

The vivid, infinity-corrected optics of the VanGuard 1320BR Clinical Microscope offers exceptionally high optical flatness and visual clarity.
The vivid, infinity-corrected optics of the VanGuard 1320BR Clinical Microscope offers exceptionally high optical flatness and visual clarity.
Discontinued!
This product has been discontinued and is no longer available. There are no replacement options.
We can help you find what you need:
Features
Applications
Ideal for the following applications: Medical and Veterinary Clinics, Universities, Industrial Laboratories
| Head | Binocular |
| Optical System | Fixed 160 mm |
| Objective Magnification | 4X, 10X, 40X, 100X (Oil) |
| Objective Type | Achromatic (DIN) |
| Viewing Head | 30° Inclination; 360° Rotatable |
| Interpupillary Adjustment | 55-75 mm |
| Dioptric Adjustment | -6 to +6 |
| Eyepieces | >10X Super WideField; 20 mm F.D.; High-Eyepoint; Rubber Eyecups |
| Nosepiece | 4-Position; Reverse Pitch |
| Focusing | Coaxial, Ultra-Low Position, Coarse/Fine Controls; Tension Adjustment; Safety Auto-Stop; 20 mm Focusing Range; 0.002 mm Precision |
| Head | Binocular |
| Optical System | Fixed 160 mm |
| Objective Magnification | 4X, 10X, 40X, 100X (Oil) |
| Objective Type | Achromatic (DIN) |
| Viewing Head | 30° Inclination; 360° Rotatable |
| Interpupillary Adjustment | 55-75 mm |
| Dioptric Adjustment | -6 to +6 |
| Eyepieces | >10X Super WideField; 20 mm F.D.; High-Eyepoint; Rubber Eyecups |
| Nosepiece | 4-Position; Reverse Pitch |
| Focusing | Coaxial, Ultra-Low Position, Coarse/Fine Controls; Tension Adjustment; Safety Auto-Stop; 20 mm Focusing Range; 0.002 mm Precision |
