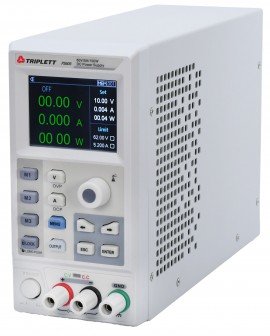

This single-output DC power supply can replace 3 common power supplies (60 V × 1.66 A/32 V × 3 A/20 V × 5 A) used in circuit board design, bench testing, and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service, and by hobbyists.
This single-output DC power supply can replace 3 common power supplies (60 V × 1.66 A/32 V × 3 A/20 V × 5 A) used in circuit board design, bench testing, and repair of circuit boards, vocational school/technical school/college level electronics classroom education, field service, and by hobbyists.
Constant Voltage or Current operation with voltage and current limits adjusted according to available maximum power (100 W). At maximum current (5 A), voltage is limited to 20V; at maximum voltage (60 V), while current is limited to 1.66 A.
It features a high precision triple 4-digit LCD color display for voltage, current, and watts (10 mV/1 mA/10 mW) with adjustable brightness, keypad lock function, output on/off control, remote sense compensation, low ripple and noise, intelligent fan regulation, and overvoltage/current protection. Three memory groups can store/recall 200 voltage/current settings each. Includes a built-in RS-232 interface for remote control and SCPI protocol, an AC power cord, software and a one-year warranty.
Features
| DC Voltage | 0 to 60.00 V |
| DC Current | 0 to 5.000 A |
| Power (Watts) | 100 W |
| Load Regulation Voltage | <0.01% + 3 mV |
| Load Regulation Current | <0.01% + 3 mA |
| Line Regulation Voltage | <0.01% + 3 mV |
| Line Regulation Current | <0.01% + 3 mA |
| Ripple and Noise | <2 mV rms, <5 mA rms |
| Display | 2.4" Color LCD, 4-digit |
| Memory | 3 groups of 200 presets each |
| Power | 110/220 V AC, 50 to 60 Hz |
| Dimensions | 6.9 x 3.4 x 10" (174 x 87 x 255 mm) |
| Weight | 5.5 lbs (2.5 kg) |
| DC Voltage | 0 to 60.00 V |
| DC Current | 0 to 5.000 A |
| Power (Watts) | 100 W |
| Load Regulation Voltage | <0.01% + 3 mV |
| Load Regulation Current | <0.01% + 3 mA |
| Line Regulation Voltage | <0.01% + 3 mV |
| Line Regulation Current | <0.01% + 3 mA |
| Ripple and Noise | <2 mV rms, <5 mA rms |
| Display | 2.4" Color LCD, 4-digit |
| Memory | 3 groups of 200 presets each |
| Power | 110/220 V AC, 50 to 60 Hz |
| Dimensions | 6.9 x 3.4 x 10" (174 x 87 x 255 mm) |
| Weight | 5.5 lbs (2.5 kg) |
