Provides better accuracy when measuring non-sinusoidal or noisy waveforms and offers a large variety of measurement with LPF, LOZ and NIST certification. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.
Provides better accuracy when measuring non-sinusoidal or noisy waveforms and offers a large variety of measurement with LPF, LOZ and NIST certification. This product includes a Traceable Calibration Certificate with full Data and Uncertainties.

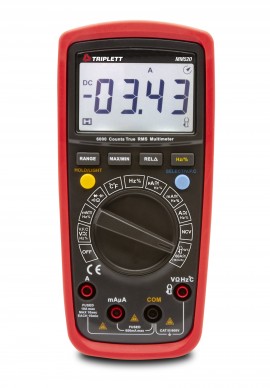

The true RMS digital multimeter has a built-in NCV detector.
Features
| Specifications | |
| Display Counts | 6000 count |
| Basic Accuracy | ±0.7% |
| AC/DC Voltage | 600 V |
| AC/DC Current | 10 A |
| AC/DC µA Current | 600 µA |
| Resistance | 60 MΩ |
| Temperature | -40 to 1832°F (-40 to 1000°C) |
| Capacitance | 100 mF |
| Frequency | 10 MHz |
| Duty Cycle | 0.1 to 99.9% |
| Continuity | <10Ω |
| Lo Pass Filter (LPF) | Yes |
| NCV Detector | Yes |
| Clamp Adapter Input | 10 mV/A (60 A max) |
| Safety Category | CAT III-600 V |
| Dimensions | 6.9 x 3.2 x 1.9" (175 x 81 x 48.5 mm) |
| Weight | 12.3 oz. (350 g) |
| Specifications | |
| Display Counts | 6000 count |
| Basic Accuracy | ±0.7% |
| AC/DC Voltage | 600 V |
| AC/DC Current | 10 A |
| AC/DC µA Current | 600 µA |
| Resistance | 60 MΩ |
| Temperature | -40 to 1832°F (-40 to 1000°C) |
| Capacitance | 100 mF |
| Frequency | 10 MHz |
| Duty Cycle | 0.1 to 99.9% |
| Continuity | <10Ω |
| Lo Pass Filter (LPF) | Yes |
| NCV Detector | Yes |
| Clamp Adapter Input | 10 mV/A (60 A max) |
| Safety Category | CAT III-600 V |
| Dimensions | 6.9 x 3.2 x 1.9" (175 x 81 x 48.5 mm) |
| Weight | 12.3 oz. (350 g) |
