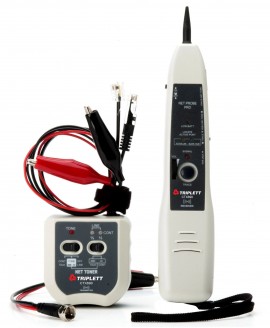

TRIPLETT CTX690 Network Toner and Probe Kit

TRIPLETT CTX690 Network Toner and Probe Kit

Model: CTX690 | UPC: 614395002022

TRIPLETT CTX690 Network Toner and Probe Kit

Model: CTX690 | UPC: 614395002022

The network toner and probe kit is for locating and tracing cables on inactive or active networks, live or dead phone lines, and coaxial video cabling systems. It also provides two selectable Net and Tel tones.

The network toner and probe kit is for locating and tracing cables on inactive or active networks, live or dead phone lines, and coaxial video cabling systems. It also provides two selectable Net and Tel tones.

Sale Price $132.60 CAD
Regular Price $170.00 CAD
Availability 2 to 3 Weeks
Quantity

TRIPLETT CTX690 Offers

Features

  • Has hub blink and link modes
  • Quickly trace active/inactive networks and live or dead phone lines
  • Insulated probe tip prevents short circuits
  • Adjustable sensitivity
  • Pulse and warble tones with audible and visual notification
  • Continuity/polarity tests and provides talk battery power
  • Built-in flashlight
  • RJ11/RJ45 modular connectors, alligator clips, and an F connector adapter for coax cable

Applications

  • Trace various types of energized/unenergized cable including twisted pair, LAN, multi-conductor, telephone, alarm and others

TRIPLETT CTX690 Specifications

Input Voltage/Current Max: 24 VAC, 60 VDC, 80 mA
Power 9 V batteries for toner and probe
Dimensions Toner: 2.5 x 2.4 x 1.4" (63 x 61.5 x 36 mm)
Probe: 8.3 x 1.6 x 1" (212 x 40 x 27.5 mm)
Weight Toner: 2.6 oz (75 g)
Probe: 2.8 oz (80 g)
Click here for complete specifications on the TRIPLETT CTX690

What's included with the TRIPLETT CTX690

  • Network Toner and Probe Kit
  • Alligator Clips
  • RJ45 and RJ11 connectors
  • F connector adapter for coax cable
  • Spare tip
  • Carrying case
