This accelerometer is designed to monitor vibrations in a variety of machine components. The device features a stainless-steel case for durability.
This accelerometer is designed to monitor vibrations in a variety of machine components. The device features a stainless-steel case for durability.

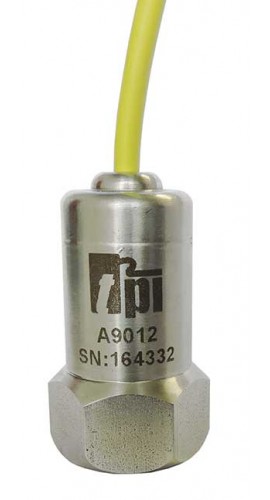

With this TPI A9012 Accelerometer, you can reliably monitor vibrations in a variety of machine equipment and more. The flame-retardant device is made with a stainless-steel case and a PZT sensing element. The accelerometer features 100 mV/g sensitivity for accurate readings.
Features
| Mounted Base Resonance | 22 kHz (nominal) |
| Sensitivity | 100 mV/g + 10%, nominal 80 Hz at 22°C |
| Frequency Response | 2 Hz to 10 kHz + 5%, 0.8 Hz to 15 kHz + 3 dB |
| Isolation | Base isolated |
| Measurement Range | +80 g |
| Transverse Sensitivity | <5% |
| Electrical Noise | 0.1 mg (max) |
| Current Range | 0.5 to 8 mA |
| Bias Voltage | 10 to 12 VDC |
| Output Impedance | 200 Ω |
| Case Isolation | >108Ω at 500 V |
| Material | Stainless steel (case) |
| Flame Retardant | Yes |
| Maximum Shock | 5,000 g |
| Product Diameter | 0.98" (25 mm) |
| Product Length | 3.2' (1 m) cable |
| Product Width | 0.87" (22 mm) |
| Product Height | 1.77" (45 mm) |
| Product Weight | 3.9 oz (110 g) |
| Mounted Base Resonance | 22 kHz (nominal) |
| Sensitivity | 100 mV/g + 10%, nominal 80 Hz at 22°C |
| Frequency Response | 2 Hz to 10 kHz + 5%, 0.8 Hz to 15 kHz + 3 dB |
| Isolation | Base isolated |
| Measurement Range | +80 g |
| Transverse Sensitivity | <5% |
| Electrical Noise | 0.1 mg (max) |
| Current Range | 0.5 to 8 mA |
| Bias Voltage | 10 to 12 VDC |
| Output Impedance | 200 Ω |
| Case Isolation | >108Ω at 500 V |
| Material | Stainless steel (case) |
| Flame Retardant | Yes |
| Maximum Shock | 5,000 g |
| Product Diameter | 0.98" (25 mm) |
| Product Length | 3.2' (1 m) cable |
| Product Width | 0.87" (22 mm) |
| Product Height | 1.77" (45 mm) |
| Product Weight | 3.9 oz (110 g) |
