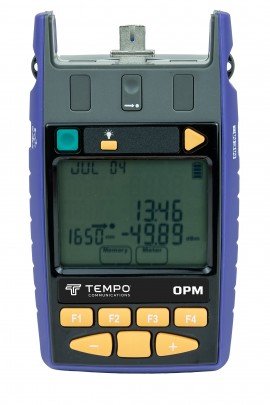

An optical power meter for professional installers and contractors, to test power, loss, and continuity on multimode + single mode fiber optic systems up to +15 dBm, with a 7 x 3 mm Ge detector.
An optical power meter for professional installers and contractors, to test power, loss, and continuity on multimode + single mode fiber optic systems up to +15 dBm, with a 7 x 3 mm Ge detector.
This full feature instrument has comprehensive report-generation capabilities and a variety of useful features for maximum productivity and flexibility. For all current and proposed versions of fiber optic Ethernet and InfiniBand.
Features
Applications
| Detector Type | Ge (7 x 3.5 mm) |
| Response Wavelength | 600 and 1650 nm |
| Calibration Wavelengths | 660, 780, 820, 850, 880, 910, 940, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1577, 1590, 1610, 1625, 1650 nm |
| Power Range | 15 to -30 dBm (for 660 and 820 nm, and 1590 and 1650 nm) 15 to -40 dBm (for 850 and 1570 nm) |
| Mid-range Linearity | 0.06 dB (typical) |
| Wavelength Sensitivity (±30 nm) | 0.2 dB (typical) |
| Response Uniformity Across Detector | 2% (0.09 dB) |
| ID Tone Detection and Autotest Sensitivity | -30 dBm |
| Calibration Accuracy | ±1% (0.06 dB) |
| Calibration Validity | 3 years (ISO/IEC 17025) |
| Resolution | 0.01 dB |
| Polarization Sensitivity | <0.05 dB (typical) |
| Tone Detection | 150 to 9999 Hz ±1% |
| Power | 2x AA (LR6) Alkaline External via micro-USB |
| Battery Life | Up to 1000 hours |
| Auto-Off | Selectable |
| USB Interfaces | micro-USB for power and software USB-A Flash Drive |
| Software | KITS - free download |
| Memory | 1000 (4-λ tests) Unlimited on USB Flash Drive |
| Temperature | Operating temperature: 5 to 131°F (-15 to 55°C) Storage temperature: -13 to 158°F (-25 to 70°C) |
| Relative Humidity | 0 to 95% |
| Warranty | 3 years |
| Dimensions | 4.9 x 3.2 x 1" (124 x 81 x 25 mm) |
| Weight | 0.92 lbs (0.42 kg) |
| Shipping Weight | 2.43 lbs (1.1 kg) |
