Multi-mode Speed Selection: One rotary switch selects specific operating mode for measurement of rotational, linear and surface speeds; per minute, per second, or per hour, as well as total length in meters, centimeters, inches, feet and yards. High Visibility Display: Oversized 5-digit display. LED for easy reading in dim environments.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTITA1).
Multi-mode Speed Selection: One rotary switch selects specific operating mode for measurement of rotational, linear and surface speeds; per minute, per second, or per hour, as well as total length in meters, centimeters, inches, feet and yards. High Visibility Display: Oversized 5-digit display. LED for easy reading in dim environments.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTITA1).

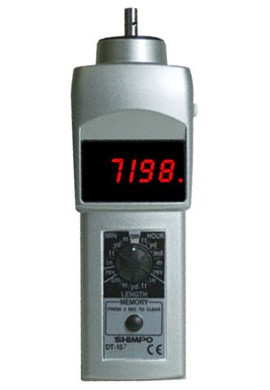

SHIMPO's microprocessor technology has heralded a superior standard in tachometer accuracy and capabilities for measuring and recording rotational/linear/surface speeds and total length. Offering unprecedented confidence via new improvements, the DT-105A and DT-107A battery-operated tachometers still feature the same rugged, high quality components that have made them the benchmark in the industry.
Features
Benefits
| Display Range | 0.10 to 25 000 rpm with floating decimal |
| Accuracy | ±0.06 rpm: 0.10 to 999.9 rpm ±0.6 rpm: 1 000.0 to 9 999.9 rpm ±0.006% of reading ±1 digit (±2rpm max.): 25 000 rpm |
| Display | 5 digit 0.4" (10mm) high LED |
| Detection | Optical coupler, 60 pulses/rev |
| Over Range Indicator | Flashing numerals |
| Update Time | 1 second (typical) |
| Power Supply | 2 x AA 1.5V |
| Battery Life | Approx. 40 hours |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Dimensions (L x W x H) | 7.2" x 2.4" x 1.8" (182.5 mm x 60 mm x 46 mm) |
| Display Range | 0.10 to 25 000 rpm with floating decimal |
| Accuracy | ±0.06 rpm: 0.10 to 999.9 rpm ±0.6 rpm: 1 000.0 to 9 999.9 rpm ±0.006% of reading ±1 digit (±2rpm max.): 25 000 rpm |
| Display | 5 digit 0.4" (10mm) high LED |
| Detection | Optical coupler, 60 pulses/rev |
| Over Range Indicator | Flashing numerals |
| Update Time | 1 second (typical) |
| Power Supply | 2 x AA 1.5V |
| Battery Life | Approx. 40 hours |
| Operating Temperature | 32° to 113°F (0° to 45°C) |
| Dimensions (L x W x H) | 7.2" x 2.4" x 1.8" (182.5 mm x 60 mm x 46 mm) |
