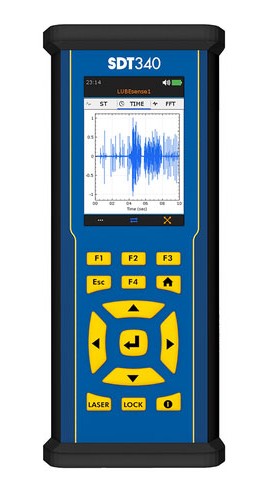

Detect, measure, analyze ultrasound and vibration with this ultrasound detector that connects maintenance to reliability in ways you never imagined possible. An ideal for solution condition monitoring, this detector provides the first line of defense for asset reliability.
Detect, measure, analyze ultrasound and vibration with this ultrasound detector that connects maintenance to reliability in ways you never imagined possible. An ideal for solution condition monitoring, this detector provides the first line of defense for asset reliability.
Keep inspectors connected to their assets with this ultrasound detector that provides live timewave and spectral views on its high-resolution color screen allowing inspectors to perform in-the-field diagnosis and analysis. This detector features a game-changing High Signal Resolution (HSR) that provides inspectors with the tools to reveal those hard-to-decipher defects. Increased sampling rate and better sensitivity lend confidence and accuracy to diagnosis.
Features
The 3.5" color display gives you a crystal clear view in the darkest conditions.
Record time waveform data up to 10 minutes in duration with enhanced signal data.
Recall historical data for trending and alarming in-the-field acquisition.
The intuitive interface to UAS3 allows for data collection in "off-route" mode.
Enhance productivity in the field with on-screen time signal, spectrum, split screen view, and icon navigation.
Experience enhanced impact detection with focUS Mode. See defects others simply cannot.
Pan and expand your time signal or spectrum and list the highest values to improve in-field diagnosis.
Cut the cord with this detector's high definition Bluetooth headphones.
Applications
| On-board Measurements | Ultrasound, vibration, infrared temperature and tachometer |
| Dual Sensor Inputs | One for ultrasound measurement and one for vibration |
| Time Signal and Spectrum | On-screen time waveform and FFT Panning and zooming for signal navigation Display of the 10 highest values |
| Frequency Range | Ultrasound: 20 to 50 kHz Vibration: 10 Hz to 10 kHz |
| Sampling Rate | 32, 64, 128 and 256 kHz oversampling FocUS Mode |
| Signal Length Per Recording | 600 seconds (32 kHz sample rate) or 150 seconds (128 kHz focUS Mode) |
| Data Memory | 4.2 GB allowing the storage of 71 minutes of signal sampled at 128 kHz or 286 minutes at 32 kHz |
| Sensitivity | Class I instrument exceeding ASTM 1002-11 requirements for gas leak detection using the appropriate sensor |
| Display | Full color TFT 3.5" screen 320 x 480 Active area: 1.93 x 2.89" (48.96 x 73.44 mm) |
| Bluetooth | For audio streaming |
| Dimensions | 8.7 x 3.7 x 1.7" (221 x 93.5 x 44 mm) |
| Weight | 25.4 oz (720 g), including battery |
Click on a category to view a selection of compatible accessories with the SDT SDT340 Ultrasound Detector, 100 kHz.
| On-board Measurements | Ultrasound, vibration, infrared temperature and tachometer |
| Dual Sensor Inputs | One for ultrasound measurement and one for vibration |
| Time Signal and Spectrum | On-screen time waveform and FFT Panning and zooming for signal navigation Display of the 10 highest values |
| Frequency Range | Ultrasound: 20 to 50 kHz Vibration: 10 Hz to 10 kHz |
| Sampling Rate | 32, 64, 128 and 256 kHz oversampling FocUS Mode |
| Signal Length Per Recording | 600 seconds (32 kHz sample rate) or 150 seconds (128 kHz focUS Mode) |
| Data Memory | 4.2 GB allowing the storage of 71 minutes of signal sampled at 128 kHz or 286 minutes at 32 kHz |
| Sensitivity | Class I instrument exceeding ASTM 1002-11 requirements for gas leak detection using the appropriate sensor |
| Display | Full color TFT 3.5" screen 320 x 480 Active area: 1.93 x 2.89" (48.96 x 73.44 mm) |
| Bluetooth | For audio streaming |
| Dimensions | 8.7 x 3.7 x 1.7" (221 x 93.5 x 44 mm) |
| Weight | 25.4 oz (720 g), including battery |
Click on a category to view a selection of compatible accessories with the SDT SDT340 Ultrasound Detector, 100 kHz.
