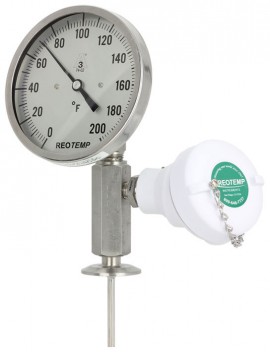

REOTEMP DMT Dual Mode Thermometer, 3" dial, 0 to 200°F/-10 to 90°C

Model: DMTL090D43RCHA-3H | Order No: DMTL-090-D43-RC-HA-3H

Be the first to review this product

REOTEMP DMT Dual Mode Thermometer, 3&quot; dial, 0 to 200&deg;F/-10 to 90&deg;C-

Downloads: datasheet manual

More REOTEMP Products

Ask an Expert

REOTEMP DMT Dual Mode Thermometer, 3" dial, 0 to 200°F/-10 to 90°C

Model: DMTL090D43RCHA-3H | Order No: DMTL-090-D43-RC-HA-3H

Be the first to review this product

With two independent sensors in one thermowell for easy tie-in to process controls, this thermometer is a convenient, multi-purpose indicator for local and remote temperature monitoring. In addition, it features a 3" (76.2 mm) dial with an adjustable angle case, 9" (228.6 mm) stem length, and 0 to 200°F/-10 to 90°C temperature range.

Sale Price	$364.00 CAD
Regular Price	$455.00 CAD
Availability	2 to 3 Weeks
Quantity	Quantity

REOTEMP DMTL090D43RCHA-3H Offers

Features

Local easy-to-read temperature indication
Self-actuating, dampened bimetal helix sensor
Increase reliability with independent local and remote reading (up to 1000°F) from one thermowell
Redundant sensors for simple, effective calibration or spot checking without removing the instrument from the thermowell
Easily installed in any standard thermowell
Interchangeable with existing thermometer, RTD, or thermocouple
Hermetically sealed per ASME B40.3
Sensor is NIST traceable

Applications

Local and remote temperature monitoring

REOTEMP DMTL090D43RCHA-3H Specifications

Temperature Range	0 to 200°F and -10 to 90°C
Accuracy	±1% of full scale
Over Range	50% over range to 550°F, 1000°F maximum
RTD	Pt/385/Class B 100 Ω Accuracy: 0.12%°C Temperature limits: -100 to 900°F
Process Connection	½" NPT
External Reset	Slotted hex screw
Lens	Glass
Hermetic Seal	Bimetal thermometer per ASME B40.3
Thermowell	Fits any standard 0.385" (9.78 mm) bore thermowell
Head Orientation	RTD head is mounted to the right of the bimetal thermometer
Case and Bezel	316SS Case style: Adjustable angle connection
Dial Size	3" (76.2 mm)
Stem	Material: 304SS Diameter: ⅜" (9.53 mm) Length: 9" (228.6 mm)

Click here for complete specifications on the REOTEMP DMTL090D43RCHA-3H

What's included with the REOTEMP DMTL090D43RCHA-3H

REOTEMP DMT Dual Mode Thermometer, 3" dial, 0 to 200°F/-10 to 90°C

datasheet for the REOTEMP DMT Dual Mode Thermometer, 3" dial, 0 to 200°F/-10 to 90°C manual for the REOTEMP DMT Dual Mode Thermometer, 3" dial, 0 to 200°F/-10 to 90°C

Ask a question about REOTEMP DMT Dual Mode Thermometer, 3" dial, 0 to 200°F/-10 to 90°C

Customer Reviews for the REOTEMP DMTL090D43RCHA-3H

Description ➕➖

REOTEMP DMTL090D43RCHA-3H Offers

Features

Local easy-to-read temperature indication
Self-actuating, dampened bimetal helix sensor
Increase reliability with independent local and remote reading (up to 1000°F) from one thermowell
Redundant sensors for simple, effective calibration or spot checking without removing the instrument from the thermowell
Easily installed in any standard thermowell
Interchangeable with existing thermometer, RTD, or thermocouple
Hermetically sealed per ASME B40.3
Sensor is NIST traceable

Applications

Local and remote temperature monitoring

Specifications ➕➖

REOTEMP DMTL090D43RCHA-3H Specifications

Temperature Range	0 to 200°F and -10 to 90°C
Accuracy	±1% of full scale
Over Range	50% over range to 550°F, 1000°F maximum
RTD	Pt/385/Class B 100 Ω Accuracy: 0.12%°C Temperature limits: -100 to 900°F
Process Connection	½" NPT
External Reset	Slotted hex screw
Lens	Glass
Hermetic Seal	Bimetal thermometer per ASME B40.3
Thermowell	Fits any standard 0.385" (9.78 mm) bore thermowell
Head Orientation	RTD head is mounted to the right of the bimetal thermometer
Case and Bezel	316SS Case style: Adjustable angle connection
Dial Size	3" (76.2 mm)
Stem	Material: 304SS Diameter: ⅜" (9.53 mm) Length: 9" (228.6 mm)
