Rental - Testo 300 LL Commercial/Industrial Combustion Analyzer Kit

Model: 0564 3004 95-RENTAL

Featuring stored, intuitive menus for all relevant measurements, this combustion analyzer is fully operated via the large touch display, which is scratch-resistant and embedded in a robust housing. Comes with O2 and CO sensors and offers a measurement range of 0 to 21 vol.% for O2 and 0 to 30,000 ppm for CO.

Featuring stored, intuitive menus for all relevant measurements, this combustion analyzer is fully operated via the large touch display, which is scratch-resistant and embedded in a robust housing. Comes with O2 and CO sensors and offers a measurement range of 0 to 21 vol.% for O2 and 0 to 30,000 ppm for CO.

Duration   day(s)
Your Price
53.00 CAD
Quantity

Testo 300 LL Offers

This commercial/industrial combustion analyzer kit features a 5" HD touchscreen, fast-on standby mode, and on-site reporting via Wi-Fi connectivity. Designed for the job site and for the contractor that expects more, use this combustion analyzer for testing and tuning of all types of boilers, heater or furnaces. Key functions and inputs include but not limited, to combustion analysis, draft, temperature, pressure, and combustion efficiency.

Features

  • Large scratch-resistant 5" HD display with smart-touch operation and replaceable protective film
  • Stored, intuitive menus for all relevant measurements
  • Four strong magnets with rubber coating for material friendly mounting
  • Ready to measure at the touch of a button in standby mode
  • E-mailing of reports directly on site
  • Get the measurement result faster: clearly structured measurement menus for all relevant measurements
  • Create documentation (including measuring value, measuring location, customer data) easily on site
  • Save PDF measurement reports directly in the instrument and always have them available

Operation via smart-touch

The smart-touch display responds immediately without any delay. That allows intuitive operation – just as easy as on your smartphone.

E-mailing of reports

Enables the convenient creation of documentation directly on site. And the dictation function even saves you typing in the process. You can send reports to the office or customers immediately via WiFi.

Keep an eye on all the measuring values

You can see all the system's parameters right away on the large 5" HD display.

Get the result faster

Clearly structured menus for all relevant measurements are already stored in the measuring instrument and guide you efficiently through the application.

Ready to use right away

No more waiting time. In standby mode, the combustion analyzer is ready to measure at the touch of a button.

Applications

  • Commercial
  • Industrial

Truly Robust: Construction

Smart measuring technology is of little benefit if it does not keep going in tough day-to-day working conditions. The Smart touch software is a partner that supports you every day in the efficient, problem-free performance of your tasks. Find out why the combustion analyzer is particularly resilient and can easily meet the special challenges across the workshops, transport vehicles and boiler rooms.

Learn more about the Testo 300
Testo 300 combustion analyzer  robust construction design

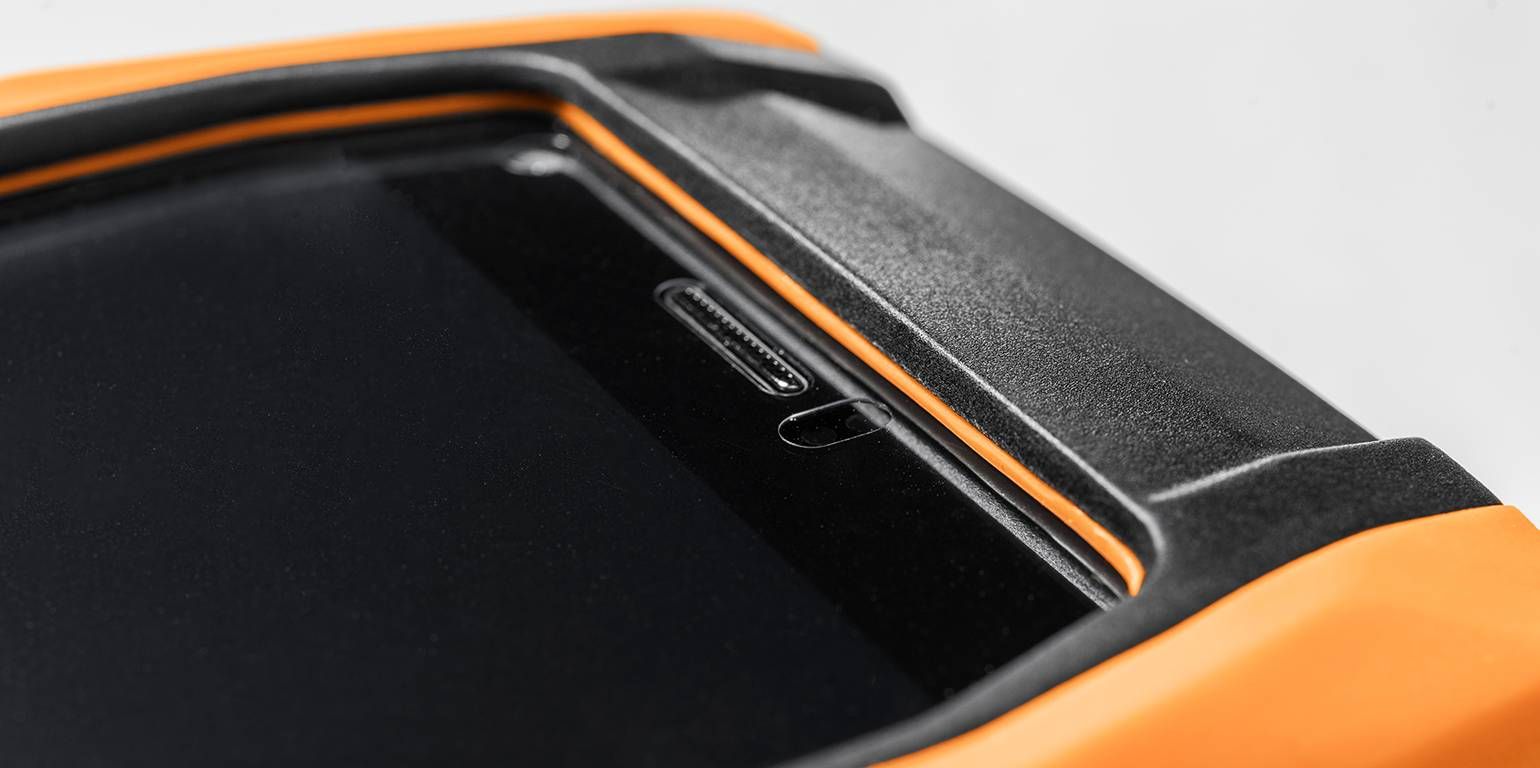

Testo 300 combustion analyzer protected display

Protected display

Scratch-resistant, recessed and with a special replaceable protective film.

Testo 300 combustion analyzer magnetic mount rubber coating

Secure mounting

4 strong magnets with rubber coating – particularly material friendly.

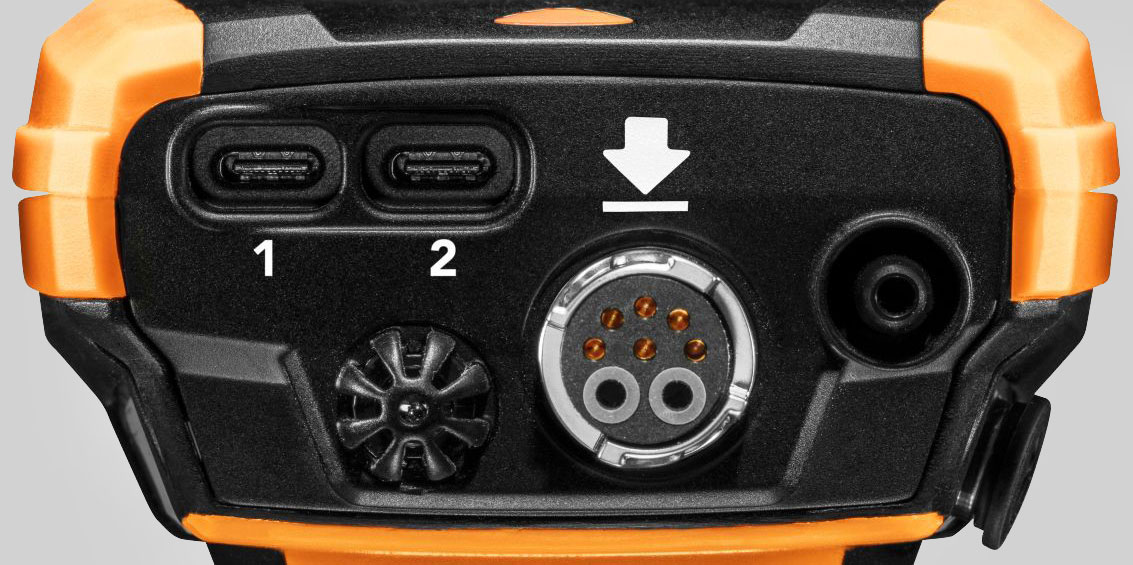

Testo 300 combustion analyzer probe bottom

Proven probes

You can use the testo 320, testo 330 and test 330-1/-2 LL probes with their practical multiple plug for the testo 300 as well.

Testo 300 combustion analyzer bolted housing casing

Bolted housing

For that extra degree of stability when it really matters.

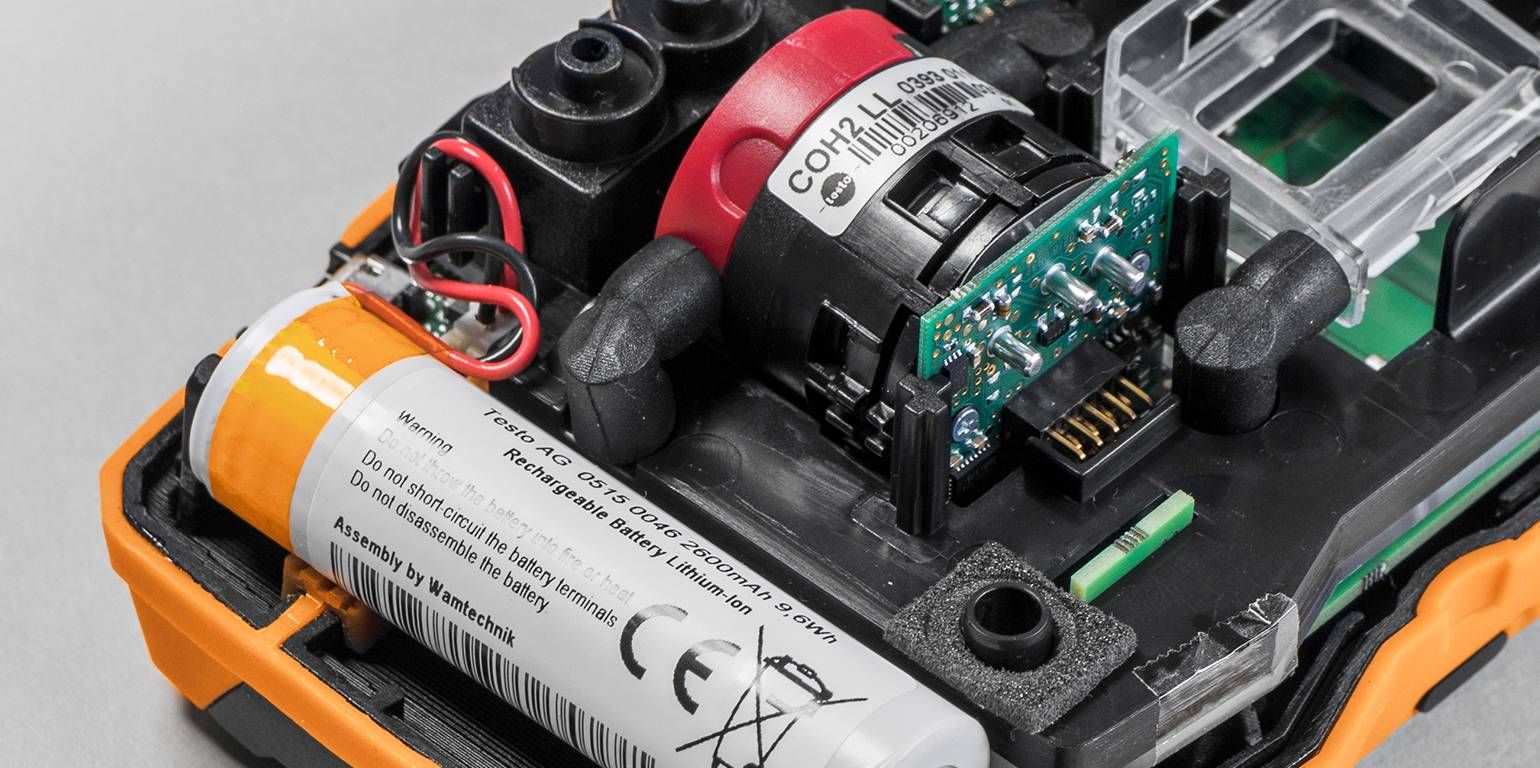

Testo 300 combustion analyzer Battery CO  O2  sensor

Robust sensors

Includes durable O2 and CO sensor, automatic dilution up to 0-30,000 ppm CO. Now with longer sensor service life thanks to automatic sensor protection.

Testo 0564 3004 95-RENTAL Specifications

O2 Measurement
Measuring Range 0 to 21 vol.%
Accuracy (±1 digit) ±0.2 vol.%
Resolution 0.1 vol.%
CO Measurement (with H2 compensation)
Measuring Range 0 to 8000 ppm
Accuracy (±1 digit) ±10 ppm or ±10% of m.v. (0 to 200 ppm)
±20 ppm or ±5% of m.v. (201 to 2000 ppm)
±10% of m.v. (2001 to 8000 ppm)
Resolution 1 ppm
CO Measurement (with H2 compensation and dilution)
Measuring Range 0 to 30,000 ppm
Accuracy (±1 digit) ±100 ppm or ±10% of m.v.
Resolution 1 ppm
Efficiency Testing (Eta)
Measuring Range 0 to 120%
Resolution 0.1%
Flue Gas Loss
Measuring Range 0 to 99.9%
Resolution 0.1%
CO2 Determination (digital calculation from O2)
Measuring Range Display range 0 to CO2 max.
Accuracy (±1 digit) ±0.2 vol.%
Resolution 0.1 vol.%
Draft Measurement
Measuring Range -10 to 40 inH2O
Accuracy (±1 digit) ±0.002 inH2O (0 to ±0.04 inH2O)
±0.02 hPa (±0.04 to ±1.2 inH2O)
±1.5% of m.v. (remaining measuring range)
Resolution 0.0001 inH2O
Pressure Measurement
Measuring Range -40 to 80 inH2O
Accuracy (±1 digit) ±0.2 inH2O (0 to ±20 inH2O)
±1% of m.v. (±20.1 to ±40 inH2O)
±1.5% of m.v. (remaining measuring range)
Resolution 0.01 inH2O
Temperature
Measuring Range -40 to 2192°F
Accuracy (±1 digit) ±1°F (32 to 212°F)
±0.5% of m.v. (remaining measuring range)
Resolution 0.1°F (-40 to 1831.82°F)
1°F (remaining measuring range)
NO Measurement *
Measuring Range 0 to 3000 ppm
Accuracy (±1 digit) ±5 ppm (0 to 100 ppm)
±5% of m.v. (101 to 2000 ppm)
±10% of m.v. (2001 to 3000 ppm)
Resolution 1 ppm

*NOTE: Can be retrofitted. NO sensor sold separately.

What's included with the Testo 0564 3004 95-RENTAL

  • Combustion Analyzer
  • Calibration Certificate
  • O2 Sensor
  • CO Sensor
  • Modular Flue Gas Probe & Hose
  • 10 x Spare Filters
  • Power Supply (USB)
  • Rugged Hard Carrying Case
  • easyHeat Software
  • Four-Year Warranty

Introducing Testo's SmartTouch display

Welcome to the Smart World of Testo

In the smart world of today, a combustion analyzer needs to do much more than provide reliably accurate results. Key to technician efficiency is an instrument that performs before and after measuring to ensure speed and accuracy through an intuitive interface designed to make work easier.

The user-friendly and highly efficient software was developed with this objective in mind. It is not just decades of experience in measuring technology. With smart-touch operation, robust construction and e-mailing of reports, the combustion analyzer will quickly become your indispensable companion for all measuring tasks involving heating.

Testo 300 SmartTouch Logo

Testo 300 combustion analyzer SmartTouch Flue Gas Analysis with the SmartTouch icon

1. Operation via smart-touch

The smart-touch display responds immediately without any delay. That allow intuitive operation - just as easy as on your smartphone.

2. E-mailing of reports

The testo 300 enables the convenient creation of documentation directly on site, and the dictation function even saves you typing in the process. You can send reports to the office or customers straight away via Wi-Fi.

3. Keep an eye on all the measuring values

You can see all the system's parameters right away on the large 5" HD display.

4. Get the results faster

Clearly structured menus for all relevant measurements are already stored in the measuring instrument and guide you efficiently through the application.

5. Ready to use right away

No more waiting time. In standby mode, the testo 300 is ready to measure at the touch of a button.

6. Completely worry-free

The testo 300 has quality sensor technology, measures high CO values up to 30,000 ppm and comes standard with the longest warranty in the industry.

Testo 300 combustion analyzer SmartTouch operation Testo 300 combustion analyzer probe attachment testing

Truly intuitive: The menus

Testo 300 Combustion analyzer SmartTouch Flue Gas Analysis Graph

Flue gas values as a graphic

See all the readings in a graphic progression display - and identify, for instance, how the flue gas loss relates to the CO value

Testo 300 combustion analyzer SmartTouch measurements

Customer / measuring site

Integrated address book with details of the relevant heating system ( e.g. manufacturer, system type, system name, serial no, fuel, etc).

Testo 300 combustion analyzer SmartTouch measurement menus

Intuitive measurement menus

Clearly structured and explicit menus for all application involving heating systems are already stored in the testo 300. This allows you to do your jobs even more efficiently.

Smart tracking of flue gas values

All the relevant values at a glance. The display can be individually configured and can easily be enlarged using the zoom-in function.

Testo interface function

The testo 300 provides an interface with a variety of industry software. This enables you to access the testo 300's readings with your terminal devices and tools and to document them or further process them in your industry software.

Testo 300 combustion analyzer SmartTouch documentation

Professional documentation

Create measurements with all the information about readings, customers and heating systems directly on site, add comments to them, have the measurements confirmed by the customer's signature and send the tests. You can also store your company logo. All PDF reports with all the important information are also saved in the instrument so that they are always readily available.

Introducing the Testo 300 Combustion Analyzer


This combustion analyzer features store, intuitive menus for all relevant measurements and is fully operated via the large touch display, which is scratch-resistant and embedded in a robust housing. It offers a measurement range of 0 to 21 vol.% for O2 and 0 to 4000 ppm for CO. Get precision and efficiency, right at your fingertips!

How to Send Reports over WiFi with the Testo 300 Combustion Analyzer


Watch this quick, intuitive video to learn how to send reports over WiFi.
