Automatically identifies ferrous and non-ferrous substrates.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTICTG1).
Automatically identifies ferrous and non-ferrous substrates.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTICTG1).

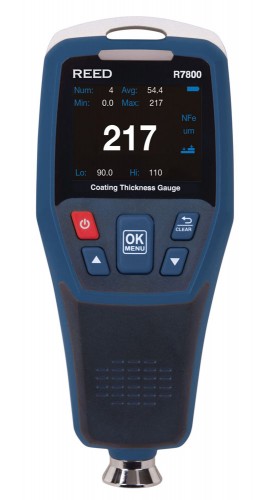

This coating thickness gauge is designed for non‐invasive coating thickness measurements. The R7800 features zero or two point calibration, user adjustable high/low alarms and a USB interface to further analyse results in the included software.
Features
Measuring Range | 0 to 1250μm 0.1 to 49.2mils |
Accuracy | 0 to 1250μm: ±3% +1μm 0 to 49.21mils: ±3% +0.04mils |
Resolution | 0 to 99.9μm: 0.1μm 100 to 1250μm: 1μm 0 to 4.99mils: 0.01mils 5.0 to 49.2mils: 0.1mils |
Measurement Modes | Single and Continuous |
Display | 4-digit color LCD display |
Resolution | 320 x 240 pixels |
Backlit Display | Yes (5 levels) |
Min/Max/Average Readings | Yes |
Minimum Curvature Radius | 5mm (196.85mils) |
Minimum Area Diameter | 20mm (787.40mils) |
Minimum Substrate Thickness | 0.5mm (19.69mils) |
Auto Shut-Off | Yes (After 5 minutes) |
Low Battery Indicator | Yes |
Power Supply | 2 x AA Batteries |
Internal Memory | Yes (Up to 500 groups) |
PC Connectivity | USB Cable |
Software | Yes |
Software OS Compatibility | Windows 7/8/10/11 |
Product Certifications | CE |
Refresh Rate | 0.5 seconds (continuous mode) |
Operating Temperature | 32 to 104°F (0 to 40°C) |
Storage Temperature | -4 to 140°F (-20 to 60°C) |
Operating Humidity Range | ≤80%RH |
Dimensions | 5.9 x 2.6 x 1.38" (152 x 65 x 35mm) |
Weight | 6.35oz (180g) |
