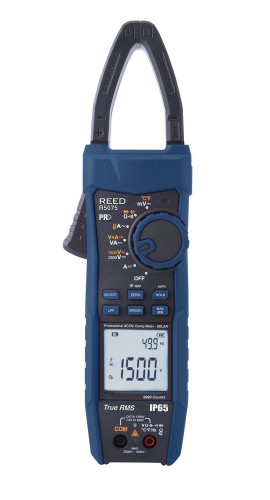

REED R5075 Professional Clamp Meter, Solar, CAT. III, 1500V

Model: R5075 | UPC: 800837006998

NEW!
REED R5075 Professional Clamp Meter, Solar, CAT. III, 1500V-

Downloads: datasheet manual

More REED Products

Ask an Expert

REED R5075 Professional Clamp Meter, Solar, CAT. III, 1500V

Model: R5075 | UPC: 800837006998

This high-performance clamp meter is designed for high-voltage applications, offering accurate AC/DC current and voltage measurements, a 9,999-count backlit LCD, and a rugged IP65-rated build, ideal for demanding environments like solar and wind power installations.

This high-performance clamp meter is designed for high-voltage applications, offering accurate AC/DC current and voltage measurements, a 9,999-count backlit LCD, and a rugged IP65-rated build, ideal for demanding environments like solar and wind power installations.

Your Price $519.00 CAD
Availability 100 in Stock
Quantity

Recommended Accessories

REED R5400 Line Splitter-

REED R5400 Line Splitter

R5400

REED R2940 Type K Air/Gas Probe-

REED R2940 Type K Air/Gas Probe

R2940

REED R2920 Type K Surface Probe-

REED R2920 Type K Surface Probe

R2920

REED R1020 Fused Test Lead Set-

REED R1020 Fused Test Lead Set

R1020

REED CA-05A Medium Soft Carrying Case-

REED CA-05A Medium Soft Carrying Case

CA-05A

REED R2990 Thermocouple Adapter-

REED R2990 Thermocouple Adapter

R2990

REED R5075 Offers

Designed for high-voltage applications, this advanced clamp meter provides comprehensive measurements of AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature. With a high-resolution 9,999-count backlit LCD display and the ability to expand AC current measurement up to 3000A (using the optional R5065 flexible current probe), it’s built to handle demanding jobs. The IP65 rating ensures durability in dusty or damp outdoor environments, making it ideal for applications in solar and wind power systems.

Features

  • Measures AC/DC current and voltage, resistance, capacitance, frequency, and contact temperature
  • High-resolution 9,999-count backlit LCD display
  • Dual display allows simultaneous viewing of voltage and current measurements
  • True RMS voltage and current for accurate measurements
  • Expandable AC current measurement up to 3000A with the flexible current probe (R5065, sold separately)
  • Slim jaw design for easy access to cables in crowded combiner boxes, with the capacity to clamp around multiple cables
  • Ergonomically designed for a comfortable grip and can be used with protective gloves
  • DC power measurement capability with kVA readings
  • IP65-rated for reliable performance in dusty or damp outdoor environments, ideal for solar and wind power applications
  • Audible and visual polarity indicator to prevent accidental miswiring
  • Low Pass Filter (LPF) and inrush measurement capabilities for precise motor and HVAC testing
  • Min, Max, Average, Peak capturing and display hold
  • Diode test and continuity check functions
  • Low battery and over-range indicators
  • Cat. III 1500V, Cat. IV 600V safety rating

REED R5075 Specifications

AC/DC Current
Range 999.9A
Accuracy AC: ±(2.5% rdg. +5 dgt.)
DC: ±(2.0% rdg. +5 dgt.)
Resolution 0.1A
AC/DC Voltage
Range AC: 999.9V, 1500V
DC: 999.9mV, 999.9V, 2500V
Accuracy ±(1.0% rdg. +5 dgt.)
Resolution 0.1mV, 0.1V, 1V
Resistance
Range 999.9Ω, 9.999KΩ, 99.99KΩ
Accuracy ±(1% rdg. +5 dgt.)
Resolution 0.1Ω, 0.001KΩ, 0.01KΩ
Capacitance
Range 100µF, 1000µF
Accuracy ±(1% rdg. +5 dgt.)
Resolution 0.1µF, 1µF
Frequency
Range 5.0Hz to 999.9Hz
Accuracy ±(0.5% rdg. +5 dgt.)
Resolution 0.1Hz
Low Pass Filter (LPF) AC Voltage
Range 999.9V
Accuracy ±(2% rdg. +9 dgt.)
Resolution 0.1V
Low Pass Filter (LPF) AC Current
Range 999.9A
Accuracy ±(2.5% rdg. +9 dgt.)
Resolution 0.1A
DC Power
Range 999.9kVA, 2500kVA
Accuracy ±(2% rdg. +20 dgt.)
Resolution 0.1kVA, 1kVA
Flexible AC Current Probe (with optional R5065)
Range 30.00A, 300.0A, 3000A
Accuracy ±(3% rdg. +5 dgt.)
LPF: ±(4.0% rdg. +9 dgt.)
Resolution 0.01A, 0.1A, 1A
Temperature
Range -40 to 752°F (-40 to 400°C)
Accuracy ±(1.0% rdg. + 60 dgt.)°F
±(1.0% rdg. + 30 dgt.)°C
Resolution 0.2°F, 0.1°C
General Specifications
Low Pass Filter (LPF) Yes
Inrush Measurement Yes
True RMS Yes
Display 9,999 count LCD display
Display Hold Yes
Max/Min/Average Measurements Yes
Internal Memory Yes (up to 999 data points)
Peak Capturing Yes
Zero Push Button Adjustment Yes
High Voltage Alarm Yes
Diode Test Yes
Backlit Display Yes
Overrange Indicator Yes
Magnetic Hanging Strap Compatible Yes (R5900 sold separately)
Continuity Check Audible and visual indicators if resistance ≤30Ω
Auto Power Off Yes (after 15 mins, off)
Flexible Current Probe Compatible Yes (R5065 sold separately)
Power Supply 2 x AA
Low Battery Indicator Yes
Jaw Opening 1.4" (35mm)
Overvoltage Category CAT. III 1500V, CAT. IV 600V
Product Certifications CE, ETL, ROHS, IP65
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 11.6 x 2.9 x 2.0" (295 x 73 x 50 mm)
Weight 19oz (540g)
Click here for complete specifications on the REED R5075

What's included with the REED R5075

  • Thermocouple Wire Probe (Type K)
  • Thermocouple Adapter
  • Test Leads
  • Carrying Case
  • Batteries

Ideal Applications for the REED R5075

  • Monitoring and maintenance of solar power systems
  • Ensuring efficient operation in wind power installations
  • Testing and maintenance in electric railway systems
  • Power quality analysis in data centers
  • Managing and maintaining battery banks for uninterruptible power supplies (UPS)
datasheet for the REED R5075 Professional Clamp Meter, Solar, CAT. III, 1500V manual for the REED R5075 Professional Clamp Meter, Solar, CAT. III, 1500V
