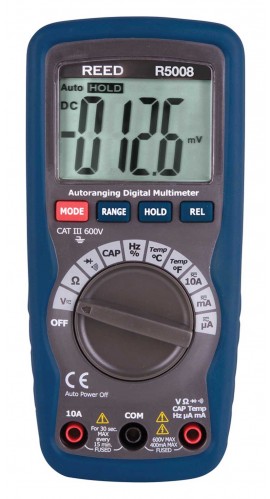

REED R5008 Compact Digital Multimeter with Temperature

Model: R5008 | UPC: 800837001252

REED R5008 Compact Digital Multimeter with Temperature-

Downloads: datasheet manual

More REED Products

Ask an Expert

REED R5008 Compact Digital Multimeter with Temperature

Model: R5008 | UPC: 800837001252

Compact autoranging digital multimeter with 11 functions.

Compact autoranging digital multimeter with 11 functions.

Discontinued!

This product has been discontinued and is no longer available.
This is the direct replacement:

REED R5010 True RMS Digital Multimeter-

REED R5010 True RMS Digital Multimeter

Model: R5010

True RMS waterproof multimeter with 40,000 count backlit LCD display.

Learn More

Recommended Accessories

REED R2990 Thermocouple Adapter-

REED R2990 Thermocouple Adapter

R2990

REED R1020 Fused Test Lead Set-

REED R1020 Fused Test Lead Set

R1020

REED CP-09 AC Current Adapter, 200A-

REED CP-09 AC Current Adapter, 200A

CP-09

REED CA-52A Small Soft Carrying Case-

REED CA-52A Small Soft Carrying Case

CA-52A

REED TP-01 Type K Beaded Wire Probe-

REED TP-01 Type K Beaded Wire Probe

TP-01

REED R5008 Offers

This autoranging multimeter is capable of measuring AC/DC voltage and current, resistance, frequency, capacitance and temperature. Featuring double molded plastic housing, the R5008 includes diode check and continuity functions and ships complete with test leads and a thermocouple probe for contact temperature measurements.

Features

  • Measures AC/DC voltage and current, frequency, resistance, capacitance and temperature
  • Diode check and continuity functions
  • Relative and data hold functions
  • Double molded plastic housing
  • Cat. III 600V safety rating

REED R5008 Specifications

AC/DC Voltage
Range AC: 400mV, 4, 40, 400, 600V
DC: 400mV, 4, 40, 400, 600V
Accuracy AC: 400mV ±(15% rdg. + 15 dgt.)
4V ±(1.2% rdg. + 3 dgt.)
40, 400V ±(1.5% rdg. + 3 dgt.)
600V ±(2.0% rdg. + 4 dgt.)
DC: 400mV ±(0.05% rdg. + 2 dgt.)
4, 40, 400V ±(1.2% rdg. + 2 dgt.)
600V ±(1.5% rdg. + 2 dgt.)
Resolution AC: 0.1mV, 1, 10, 100V
DC: 0.1mV, 1, 10, 100V
AC/DC Current
Range 400, 4000µA, 40, 400mA, 10A
Accuracy AC: 400µA ±(1.5% rdg. + 5 dgt.)
4000µA/ 40, 400mA ±(1.8% rdg. + 5 dgt.)
10A ±(3.0% rdg. + 7 dgt.)
DC: 400µA ±(1.0% rdg. + 3 dgt.)
4000µA/ 40, 400mA ±(1.5% rdg. + 3 dgt.)
10A ±(2.5% rdg. + 5 dgt.)
Resolution 0.1, 1µA, 10, 100mA, 1A
Resistance
Range 400Ω, 4, 40, 400kΩ, 4, 40MΩ
Accuracy 400Ω: ±(1.2% rdg. + 4 dgt.)
4kΩ: ±(1.0% rdg. + 2 dgt.)
40, 400kΩ, 4MΩ: ±(1.2% rdg. + 2 dgt.)
40MΩ: ±(2.0% rdg. + 3 dgt.)
Resolution 0.1Ω, 1, 10, 100kΩ, 1, 10MΩ
Capacitance
Range 4, 40, 400nF, 4, 40, 200µF
Accuracy 4nF: ±(5.0% rdg. + 50 dgt.)
40nF: ±(5.0% rdg. + 7 dgt.)
400nF/4, 40uF: ±(3% rdg. + 5 dgt.)
200µF: ±(5% rdg. + 5 dgt.)
Resolution 1, 10pF, 0.1, 1, 10nF, 0.1µF
Frequency
Range 9.999, 99.99, 999.9Hz, 9.999, 99.99, 999.9KHz, 9.999MHz
Accuracy 9.999, 99.99Hz: ±(1.5% rdg. + 5 dgt.)
999.9Hz, 9.999, 99.99, 999.9KHz: ±(1.2% rdg. + 3 dgt.)
9.999MHz: ±(1.5% rdg. + 4 dgt.)
Resolution 0.001, 0.01, 0.1, 1, 10, 100Hz, 1kHz
Temperature
Range -4 to 1400°F (-20 to 760°C)
Accuracy ±(3.0% rdg. + 9°F)
±(3.0% rdg. + 5°C)
Resolution 1°F, 1°C
General Specifications
Range Selection Autoranging/Manual
Display 4,000 count LCD display
Display Hold Yes
Peak Hold Yes
Relative Mode Yes
Diode Test Yes
Continuity Check Audible signal if resistance ≤150Ω
Duty Cycle Yes (0.1 - 99.9%)
Kick Stand Yes
Auto Power Off Yes (after 15 minutes)
Power Supply 9V Battery
Low Battery Indicator Yes
Fuse Protection Yes
Replaceable Test Leads Yes
Overvoltage Category CAT. III 600V
Product Certifications CE
Operating Temperature 32 to 122°F (0 to 50°C)
Storage Temperature -4 to 140°F (-20 to 60°C)
Dimensions 5.9 x 2.8 x 1.9" (150 x 70 x 48mm)
Weight 9oz (255g)
Click here for complete specifications on the REED R5008

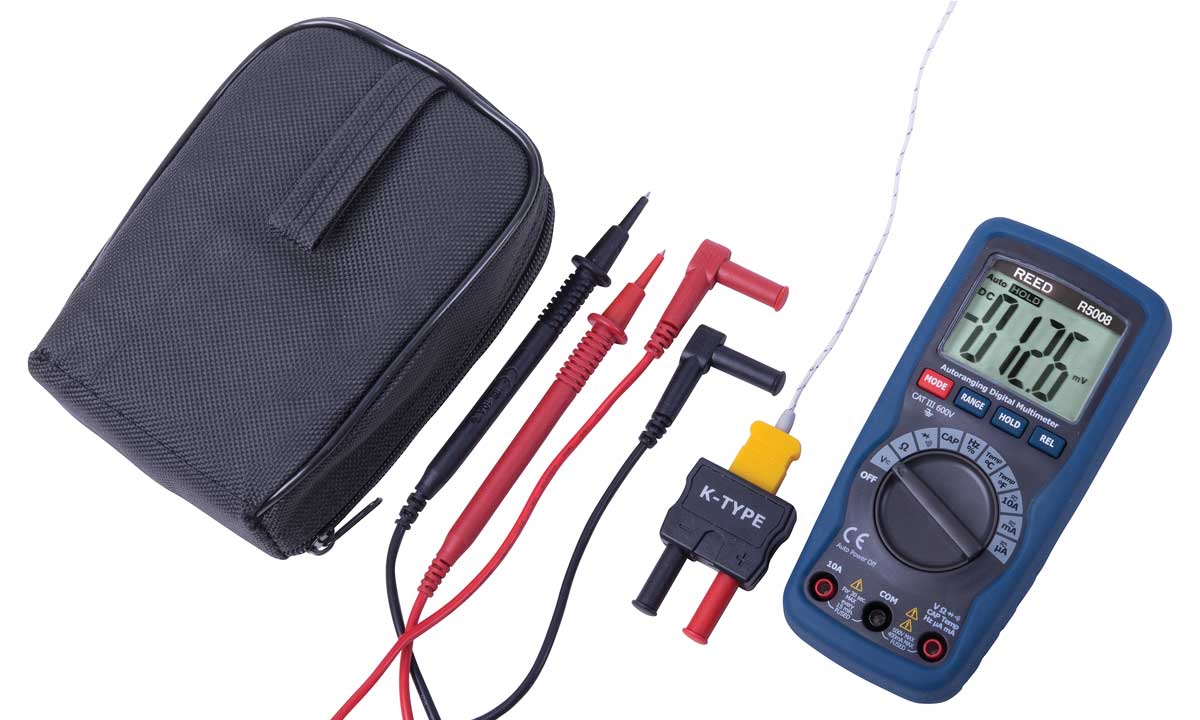

What's included with the REED R5008

  • Compact Digital Multimeter
  • Temperature Input Adapter
  • Thermocouple Wire Probe (Type K)
  • Test Leads
  • Battery
  • Carrying Case

How To: Test for Continuity with a Multimeter


If you're not sure of the continuity of your circuit, you may need to perform a test with a multimeter. For the purpose of this video, we'll be using the R5008 Multimeter. These steps will work for most multimeters.

Ideal Applications for the REED R5008

  • Testing batteries
  • Testing household wiring
  • Testing electric motors
  • Testing power supplies
datasheet for the REED R5008 Compact Digital Multimeter with Temperature manual for the REED R5008 Compact Digital Multimeter with Temperature
