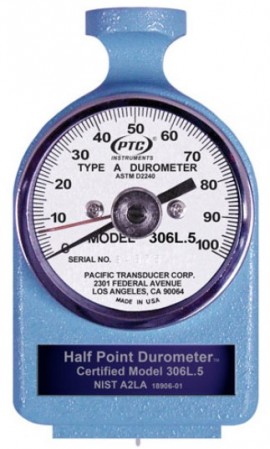

PTC Instruments 306L.5 Classic Durometer Shore A Scale

Model: 306L.5

PTC Instruments 306L.5 Classic Durometer Shore A Scale-

Downloads: datasheet

More PTC Instruments Products

Ask an Expert

PTC Instruments 306L.5 Classic Durometer Shore A Scale

Model: 306L.5

This analog classic style durometer is designed to measure ASTM (American Society for Testing and Materials) D2240 type A hardness. Featuring a low glare aluminum dial with bold, easy to read numbers and comes standard with a Max Hold hand which retains the peak reading. It has a total accuracy of ± 0.5 points for the most stringent material testing.

This analog classic style durometer is designed to measure ASTM (American Society for Testing and Materials) D2240 type A hardness. Featuring a low glare aluminum dial with bold, easy to read numbers and comes standard with a Max Hold hand which retains the peak reading. It has a total accuracy of ± 0.5 points for the most stringent material testing.

Sale Price $1604.80 CAD
Regular Price $1888.00 CAD
Availability 1 to 2 Weeks
Quantity

Recommended Accessories

PTC Instruments 401A Aluminum Test Block ASTM Type A, 0.44 x 2.25 x 0.75"-

PTC Instruments 401A Aluminum Test Block ASTM Type A, 0.44 x 2.25 x 0.75"

401A

PTC Instruments 400A Rubber Test Block Kit for ASTM type A-

PTC Instruments 400A Rubber Test Block Kit for ASTM type A

400A

PTC Instruments 473 Deadweight Durometer Stand, 2.2 lbs and 11 lbs-

PTC Instruments 473 Deadweight Durometer Stand, 2.2 lbs and 11 lbs

473

PTC Instruments 471 Durometer Stand for A/B/O durometers, 2.2 lbs-

PTC Instruments 471 Durometer Stand for A/B/O durometers, 2.2 lbs

471

PTC Instruments 7000A Hydraulic Durometer Stand for A/B/O durometers-

PTC Instruments 7000A Hydraulic Durometer Stand for A/B/O durometers

7000A

PTC Instruments 320 Durometer Stand Spring Load Cell-

PTC Instruments 320 Durometer Stand Spring Load Cell

320

PTC Instruments 306L.5 Offers

This analog classic style durometer is designed to measure ASTM (American Society for Testing and Materials) D2240 type A hardness. Featuring a low-glare aluminum dial with bold, easy-to-read numbers and comes standard with a Max Hold hand which retains the peak reading. It has a total accuracy of ±0.5 points for the most stringent material testing. Each instrument is individually calibrated.

Features

  • Meets or exceeds current ASTM D2240 specifications for type A
  • Accuracy of ±0.5 points
  • NIST/A2LA certification included
  • Max Hold pointer is standard
  • Easy-to-read 0 to 100 point dial
  • Accessory test stands available: deadweight or spring loaded
  • Includes precision aluminum test block and sturdy carrying case

Applications

  • Rubber
  • Elastomers
  • Other Rubber-Like Materials Including Neoprene, Silicone, Vinyl and Butyl
  • Soft Plastics
  • Felt
  • Leather

PTC Instruments 306L.5 Specifications

Range Type A: 0 to 100 points
Accuracy ±0.5 points
Test Block (Included) Model 401
Height 4" (10.2 cm)
Width 2.25" (5.7 cm)
Depth 1.75" (4.4 cm)
Weight 8 oz (227 g)
Shipping Weight 3 lbs (1.4 kg)
Click here for complete specifications on the PTC Instruments 306L.5

What's included with the PTC Instruments 306L.5

  • Analog Classic Style Durometer (ASTM Type A)
  • Precision Aluminum Test Block
  • Sturdy Carrying Case
  • Test Block (Model 401)
datasheet for the PTC Instruments 306L.5 Classic Durometer Shore A Scale

Click on a category to view a selection of compatible accessories with the PTC Instruments 306L.5 Classic Durometer Shore A Scale.

PTC Instruments 401A Aluminum Test Block ASTM Type A, 0.44 x 2.25 x 0.75" 401A
The aluminum test block is used as a field check of type A durometers. It indicates if the durometer is mechanically sound before use. It is a combination of depth gauge and spring force gauge designed to provide consistent results in a wider temperature range than rubber or plastic blocks.



PTC Instruments 400A Rubber Test Block Kit for ASTM type A 400A
The durometer rubber test block kit is used for verification and not for durometer calibration. It serves as a reference to the operational status of the durometer. It works with ASTM type A durometers.



PTC Instruments 473 Deadweight Durometer Stand, 2.2 lbs and 11 lbs 473
The durometer deadweight test stand is designed to provide the ASTM recommended forces. Compatible with classic or ergo style durometers and of other manufacturers provided it can be mounted on an 8 to 32" thread. It comes with both 1-kg (for ASTM type A, B, E, and O) and 5-kg (ASTM C, D, and DO) weight.



PTC Instruments 471 Durometer Stand for A/B/O durometers, 2.2 lbs 471
The durometer stand is for durometer types A, B, O, and Asker C and is also fully compatible with durometers of other manufacturers. It has a 1-kg weight and test materials up to 3" thick.



PTC Instruments 7000A Hydraulic Durometer Stand for A/B/O durometers 7000A
Each precision-engineered hydraulic durometer stand has a hydraulic damper controlling the rate of descent smoothly, without jump or stutter. The unit is activated with simple smooth lever control. Designed for serious testing and eliminating operator variability and increased accuracy and repeatability.



PTC Instruments 320 Durometer Stand Spring Load Cell 320
The precision-engineered durometer stand spring load cell provide the ASTM recommended forces for Types A, B, E, O, C, D, and DO. Its innovative design allows the user to lock the table perpendicular to the durometer or to be used in the self-aligning mode to accommodate non-parallel material test specimens.



Ask a question about PTC Instruments 306L.5 Classic Durometer Shore A Scale

Customer Reviews for the PTC Instruments 306L.5

PTC Instruments 306L.5 Offers

This analog classic style durometer is designed to measure ASTM (American Society for Testing and Materials) D2240 type A hardness. Featuring a low-glare aluminum dial with bold, easy-to-read numbers and comes standard with a Max Hold hand which retains the peak reading. It has a total accuracy of ±0.5 points for the most stringent material testing. Each instrument is individually calibrated.

Features

  • Meets or exceeds current ASTM D2240 specifications for type A
  • Accuracy of ±0.5 points
  • NIST/A2LA certification included
  • Max Hold pointer is standard
  • Easy-to-read 0 to 100 point dial
  • Accessory test stands available: deadweight or spring loaded
  • Includes precision aluminum test block and sturdy carrying case

Applications

  • Rubber
  • Elastomers
  • Other Rubber-Like Materials Including Neoprene, Silicone, Vinyl and Butyl
  • Soft Plastics
  • Felt
  • Leather
Show More...

PTC Instruments 306L.5 Specifications

Range Type A: 0 to 100 points
Accuracy ±0.5 points
Test Block (Included) Model 401
Height 4" (10.2 cm)
Width 2.25" (5.7 cm)
Depth 1.75" (4.4 cm)
Weight 8 oz (227 g)
Shipping Weight 3 lbs (1.4 kg)
Click here for complete specifications on the PTC Instruments 306L.5

What's included with the PTC Instruments 306L.5

  • Analog Classic Style Durometer (ASTM Type A)
  • Precision Aluminum Test Block
  • Sturdy Carrying Case
  • Test Block (Model 401)
datasheet for the PTC Instruments 306L.5 Classic Durometer Shore A Scale

Click on a category to view a selection of compatible accessories with the PTC Instruments 306L.5 Classic Durometer Shore A Scale.

PTC Instruments 401A Aluminum Test Block ASTM Type A, 0.44 x 2.25 x 0.75" 401A
The aluminum test block is used as a field check of type A durometers. It indicates if the durometer is mechanically sound before use. It is a combination of depth gauge and spring force gauge designed to provide consistent results in a wider temperature range than rubber or plastic blocks.



PTC Instruments 400A Rubber Test Block Kit for ASTM type A 400A
The durometer rubber test block kit is used for verification and not for durometer calibration. It serves as a reference to the operational status of the durometer. It works with ASTM type A durometers.



PTC Instruments 473 Deadweight Durometer Stand, 2.2 lbs and 11 lbs 473
The durometer deadweight test stand is designed to provide the ASTM recommended forces. Compatible with classic or ergo style durometers and of other manufacturers provided it can be mounted on an 8 to 32" thread. It comes with both 1-kg (for ASTM type A, B, E, and O) and 5-kg (ASTM C, D, and DO) weight.



PTC Instruments 471 Durometer Stand for A/B/O durometers, 2.2 lbs 471
The durometer stand is for durometer types A, B, O, and Asker C and is also fully compatible with durometers of other manufacturers. It has a 1-kg weight and test materials up to 3" thick.



PTC Instruments 7000A Hydraulic Durometer Stand for A/B/O durometers 7000A
Each precision-engineered hydraulic durometer stand has a hydraulic damper controlling the rate of descent smoothly, without jump or stutter. The unit is activated with simple smooth lever control. Designed for serious testing and eliminating operator variability and increased accuracy and repeatability.



PTC Instruments 320 Durometer Stand Spring Load Cell 320
The precision-engineered durometer stand spring load cell provide the ASTM recommended forces for Types A, B, E, O, C, D, and DO. Its innovative design allows the user to lock the table perpendicular to the durometer or to be used in the self-aligning mode to accommodate non-parallel material test specimens.



Ask a question about PTC Instruments 306L.5 Classic Durometer Shore A Scale

Customer Reviews for the PTC Instruments 306L.5
