This loop-powered meter boasts explosion-proof protection. It's strong enough to endure hazardous applications.
This loop-powered meter boasts explosion-proof protection. It's strong enough to endure hazardous applications.

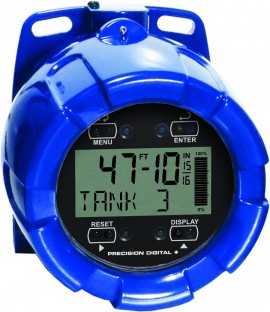

For ultimate field endurance, choose the Precision Digital PD6801-0K1 ProtEX Explosion-Proof Loop-Powered Level Meter. This meter is crafted for extreme durability in even the most hazardous environments. Plus, it can be mounted to either a wall or a pipe depending on the needs of your setup. The display comes with a backlight for viewing in direct sunlight and features convenient SafeTouch® buttons.
Features
| Protection Rating | NEMA 4X/IP68 |
| Input | 4 to 20 mA current, 1 digital (for external alarm reset only) |
| Output | 1 open collector |
| Display | 7-digit dual-line LCD with standard backlighting (feet and inches) |
| Reading Range | Up to 699.9' |
| Power | Loop-powered |
| Transmitter Power | None |
| Serial Communication | None |
| Operating Temperature | -40 to 167°F (-40 to 75°C) |
| Material | Die-cast aluminum with glass window and corrosion-resistant epoxy coating |
| Noise Filter | Low, medium, high, off |
| Approval | CE, CSA (XP), FM (XP), ATEX (FP), IECEx (FP) |
| Product Length | 4.86" (124 mm) |
| Product Width | 5.65" (144 mm) |
| Product Height | 5.25" (133 mm) |
| Product Weight | 5 lbs (2.27 kg) |
| Manufacturer Warranty | 3 years |
| Protection Rating | NEMA 4X/IP68 |
| Input | 4 to 20 mA current, 1 digital (for external alarm reset only) |
| Output | 1 open collector |
| Display | 7-digit dual-line LCD with standard backlighting (feet and inches) |
| Reading Range | Up to 699.9' |
| Power | Loop-powered |
| Transmitter Power | None |
| Serial Communication | None |
| Operating Temperature | -40 to 167°F (-40 to 75°C) |
| Material | Die-cast aluminum with glass window and corrosion-resistant epoxy coating |
| Noise Filter | Low, medium, high, off |
| Approval | CE, CSA (XP), FM (XP), ATEX (FP), IECEx (FP) |
| Product Length | 4.86" (124 mm) |
| Product Width | 5.65" (144 mm) |
| Product Height | 5.25" (133 mm) |
| Product Weight | 5 lbs (2.27 kg) |
| Manufacturer Warranty | 3 years |
