Built with a rugged extruded aluminum frame making it suitable for rough environments. Included are features typically found on high end models only.
Built with a rugged extruded aluminum frame making it suitable for rough environments. Included are features typically found on high end models only.
Discontinued!
This product has been discontinued and is no longer available.
This is the direct replacement:

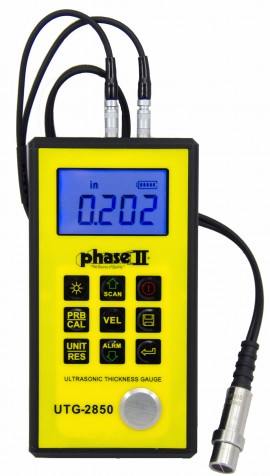

This dynamic ultrasonic thickness gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, titanium, plastics, ceramics, glass, and any other good ultrasonic wave conductor as long as it has parallel top and bottom surfaces.
The UTG-2850 ultrasonic thickness gauge will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.
Features
Applications
| Measuring Range | Pulse-Echo: 0.030 to 12.0" in steel |
| Accuracy | ±(0.5% thickness + .001") |
| Sound Velocity Range | 3280-32805ft/s (1000-9999m/s) |
| Scanning Feature | Yes, 16 measurements/second |
| Display Type | 4.5 digit LCD w/Back Light |
| Minimum Display Unit | 0.001"/0.01mm (selectable) |
| Frequency | 5MHz |
| Update Range | 4Hz |
| Operating Temperature | 32 to 122ºF (0 to 50ºC) |
| Memory | 20 Groups (100 files/group) |
| Output | USB |
| Mini-Printer | Optional |
| Power supply | AA alkaline batteries (2pc) |
| Battery Life | Approx. 100 hours (w/backlight off) |
| Power Consumption | Working current is less than 3V |
| Dimensions | 5.90 x 2.91 x 1.30" (150 x 74 x 33mm) |
| Weight | 8.6oz (245g) |
| Measuring Range | Pulse-Echo: 0.030 to 12.0" in steel |
| Accuracy | ±(0.5% thickness + .001") |
| Sound Velocity Range | 3280-32805ft/s (1000-9999m/s) |
| Scanning Feature | Yes, 16 measurements/second |
| Display Type | 4.5 digit LCD w/Back Light |
| Minimum Display Unit | 0.001"/0.01mm (selectable) |
| Frequency | 5MHz |
| Update Range | 4Hz |
| Operating Temperature | 32 to 122ºF (0 to 50ºC) |
| Memory | 20 Groups (100 files/group) |
| Output | USB |
| Mini-Printer | Optional |
| Power supply | AA alkaline batteries (2pc) |
| Battery Life | Approx. 100 hours (w/backlight off) |
| Power Consumption | Working current is less than 3V |
| Dimensions | 5.90 x 2.91 x 1.30" (150 x 74 x 33mm) |
| Weight | 8.6oz (245g) |
