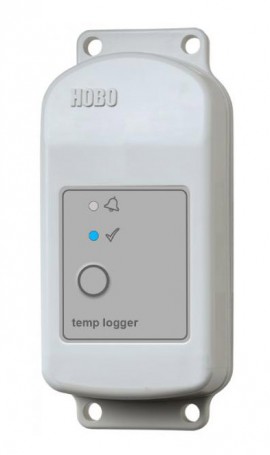

Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor

Model: MX2305

Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor-

Downloads: datasheet manual

More Onset HOBO Products

Ask an Expert

Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor

Model: MX2305

Weatherproof and designed to provide accurate results, this wireless temperature data logger features one internal temperature sensors to measure in harsh environments. Fast to set up, this logger downloads data from your mobile device via Bluetooth Low Energy with a 100' (30 m) range.

Weatherproof and designed to provide accurate results, this wireless temperature data logger features one internal temperature sensors to measure in harsh environments. Fast to set up, this logger downloads data from your mobile device via Bluetooth Low Energy with a 100' (30 m) range.

Regular Price $223.00 CAD
Availability 4 to 5 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your MX2305 Wireless Temperature Data Logger with internal sensor

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your MX2305 Wireless Temperature Data Logger with internal sensor

Recommended Accessories

Onset HOBO MXGTW1 MX Gateway-

Onset HOBO MXGTW1 MX Gateway

MXGTW1

Onset HOBO HRB-2/3AA Replacement Battery for MX2300-

Onset HOBO HRB-2/3AA Replacement Battery for MX2300

HRB-2/3AA

Onset HOBO M-RSA Solar Radiation Shield-

Onset HOBO M-RSA Solar Radiation Shield

M-RSA

Onset HOBO MX2300-RS-BRACKET Mounting Bracket for RS1 or M-RSA-

Onset HOBO MX2300-RS-BRACKET Mounting Bracket for RS1 or M-RSA

MX2300-RS-BRACKET

Onset HOBO RS1 Solar Radiation Shield-

Onset HOBO RS1 Solar Radiation Shield

RS1

Onset HOBO MX2305 Specifications

Temperature Sensor
Range -40 to 158°F (-40 to 70°C)
Drift <0.018°F (0.01°C) per year
Accuracy ±0.45 from -40 to 32°F (±0.25°C from -40 to 0°C)
±0.36 from 32 to 158°F (±0.2°C from 0 to 70°C)
Resolution 0.072°F (0.04°C)
Logger
Operating Range -40 to 158°F (-40 to 70°C)
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 100' (30.5 m) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logging Rate 1 second to 18 hours
Modes Logging: Fixed interval (normal, statistics) or burst
Memory: Wrap when full or stop when full
Start: Immediate, push button, date and time, or next interval
Stop: When memory full, push button, date and time, or after a set logging period
Time Accuracy ±1 minute per month 32 to 122°F (0 to 50°C)
Full Memory Download Time Approximately 60 seconds; may take longer the further the device is from the logger
Materials Acetal, silicone gasket, stainless steel screws
Battery Type: 2/3 x AA 3.6 V lithium, user replaceable
Life: 2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life
Environmental Rating NEMA 6 and IP67
Dimensions 4.25 x 2.0 x 0.88" (10.8 x 5.08 x 2.24 cm)
Weight 2.66 oz (75.5 g)
Click here for complete specifications on the Onset HOBO MX2305

What's included with the Onset HOBO MX2305

  • Wireless Temperature Data Logger
  • Screws
  • Cable Ties

HOBO MX2300 Series Wireless Temperature/Humidity Data Loggers


Learn everything there is to know with this very informative and complete video about the MX2300 series temperature & relative humidity data loggers.

Choosing the Right HOBO Indoor Temperature/Relative Humidity Data Logger


If you need help choosing the right data logger for your job, you need to watch this video! Here are some of the main topics:
  1. 3:54 Data logger platforms
  2. 4:39 USB data loggers
  3. 8:04 Bluetooth Smart data loggers
  4. 14:04 web-based systems
and everything in between.
datasheet for the Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor manual for the Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor

Click on a category to view a selection of compatible accessories with the Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor.

Onset HOBO MXGTW1 MX Gateway MXGTW1
Automatically transmits MX Bluetooth Low Energy logger data to cloud-based HOBOlink software, and is ideal for obtaining remote access to data from multiple MX data loggers monitoring indoor environmental conditions. It communicates with compatible MX data loggers through the HOBOmobile app on an iOS or Android mobile device.



Onset HOBO HRB-2/3AA Replacement Battery for MX2300 HRB-2/3AA
Replacement lithium 2/3 AA battery for the MX2300 data loggers.



Onset HOBO M-RSA Solar Radiation Shield M-RSA
Recommended for measuring temperature and relative humidty accurately in locations exposed to direct or indirect solar radiation. Mounts on tripods, masts, or flat vertical surfaces.



Onset HOBO RS1 Solar Radiation Shield RS1
Recommended for temperature and relative humidity measurement accuracy in locations exposed to direct or reflected solar radiation. Mounts on tripods, masts, or flat vertical surfaces.



Onset HOBO MX2300-RS-BRACKET Mounting Bracket for RS1 or M-RSA MX2300-RS-BRACKET
This bracket is required for mounting MX2301 and MX2305 loggers in either RS1 or M-RSA solar radiation shield.



Ask a question about Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor

Customer Reviews for the Onset HOBO MX2305

Onset HOBO MX2305 Specifications

Temperature Sensor
Range -40 to 158°F (-40 to 70°C)
Drift <0.018°F (0.01°C) per year
Accuracy ±0.45 from -40 to 32°F (±0.25°C from -40 to 0°C)
±0.36 from 32 to 158°F (±0.2°C from 0 to 70°C)
Resolution 0.072°F (0.04°C)
Logger
Operating Range -40 to 158°F (-40 to 70°C)
Radio Power 1 mW (0 dBm)
Transmission Range Approximately 100' (30.5 m) line-of-sight
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logging Rate 1 second to 18 hours
Modes Logging: Fixed interval (normal, statistics) or burst
Memory: Wrap when full or stop when full
Start: Immediate, push button, date and time, or next interval
Stop: When memory full, push button, date and time, or after a set logging period
Time Accuracy ±1 minute per month 32 to 122°F (0 to 50°C)
Full Memory Download Time Approximately 60 seconds; may take longer the further the device is from the logger
Materials Acetal, silicone gasket, stainless steel screws
Battery Type: 2/3 x AA 3.6 V lithium, user replaceable
Life: 2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life
Environmental Rating NEMA 6 and IP67
Dimensions 4.25 x 2.0 x 0.88" (10.8 x 5.08 x 2.24 cm)
Weight 2.66 oz (75.5 g)
Click here for complete specifications on the Onset HOBO MX2305
Show More...

What's included with the Onset HOBO MX2305

  • Wireless Temperature Data Logger
  • Screws
  • Cable Ties

HOBO MX2300 Series Wireless Temperature/Humidity Data Loggers


Learn everything there is to know with this very informative and complete video about the MX2300 series temperature & relative humidity data loggers.

Choosing the Right HOBO Indoor Temperature/Relative Humidity Data Logger


If you need help choosing the right data logger for your job, you need to watch this video! Here are some of the main topics:
  1. 3:54 Data logger platforms
  2. 4:39 USB data loggers
  3. 8:04 Bluetooth Smart data loggers
  4. 14:04 web-based systems
and everything in between.
datasheet for the Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor manual for the Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor

Click on a category to view a selection of compatible accessories with the Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor.

Onset HOBO MXGTW1 MX Gateway MXGTW1
Automatically transmits MX Bluetooth Low Energy logger data to cloud-based HOBOlink software, and is ideal for obtaining remote access to data from multiple MX data loggers monitoring indoor environmental conditions. It communicates with compatible MX data loggers through the HOBOmobile app on an iOS or Android mobile device.



Onset HOBO HRB-2/3AA Replacement Battery for MX2300 HRB-2/3AA
Replacement lithium 2/3 AA battery for the MX2300 data loggers.



Onset HOBO M-RSA Solar Radiation Shield M-RSA
Recommended for measuring temperature and relative humidty accurately in locations exposed to direct or indirect solar radiation. Mounts on tripods, masts, or flat vertical surfaces.



Onset HOBO RS1 Solar Radiation Shield RS1
Recommended for temperature and relative humidity measurement accuracy in locations exposed to direct or reflected solar radiation. Mounts on tripods, masts, or flat vertical surfaces.



Onset HOBO MX2300-RS-BRACKET Mounting Bracket for RS1 or M-RSA MX2300-RS-BRACKET
This bracket is required for mounting MX2301 and MX2305 loggers in either RS1 or M-RSA solar radiation shield.



Ask a question about Onset HOBO MX2305 Wireless Temperature Data Logger with internal sensor

Customer Reviews for the Onset HOBO MX2305
