Monitoring Solutions for Water, Indoor, Outdoor, & Agriculture
A weatherproof data logger with relative humidity sensors and external temperature. Advantage of Bluetooth, low Energy and easy-to-use. This logger is fast and data is downloaded directly from your mobile device.
A weatherproof data logger with relative humidity sensors and external temperature. Advantage of Bluetooth, low Energy and easy-to-use. This logger is fast and data is downloaded directly from your mobile device.
This weatherproof data logger with built-in temperature and relative humidity sensors provides high-accuracy measurements in harsh outdoor environments. Leveraging Bluetooth Low Energy, this logger enables easy, fast setup and data download directly from your mobile device or Windows computer with the HOBOconnect app.
This data logger requires a compatible mobile device or Windows computer and the HOBOconnect app.
Features
In what environment does this data logger operate?
Support measurements
Accurate data, easily
Get the measurement accuracy you need – wherever you need it – without having to remove loggers from their deployed locations to offload data. All you need is a mobile phone or tablet running the free HOBOmobile app. No PC software to install, and no cables to connect!
Legendary reliability
The MX2300 series of temperature/RH loggers are built to withstand the elements. They feature a rugged weatherproof housing designed for long-term studies – even in harsh climates. Their compact size and built-in mounting holes make deployment simple, with no need for mounting brackets in most cases. Plus, wireless communication means these loggers can be deployed entirely inside our RS1 solar radiation shield for high reliability, while still being easy to offload with a mobile device.

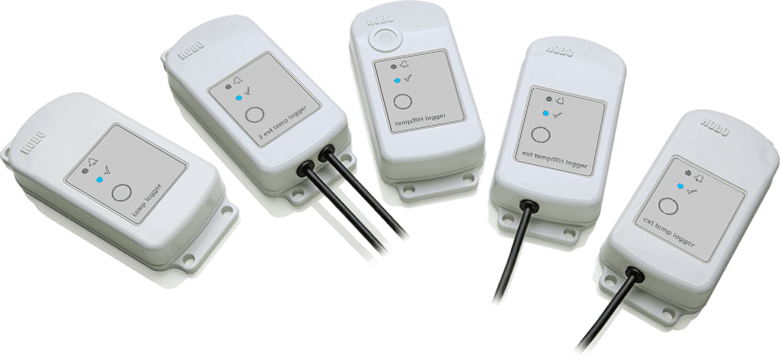

Choice of models
The MX2300 series offers five models, covering a broad range of outdoor monitoring applications, from agricultural research to forest ecology studies. The series includes internal sensor models that are highly durable and easy to deploy, and external probe models that are well-suited for monitoring conditions in soils, water, walls, and more.
Download the mobile App
| Temperature Sensor | |
| Range | -40 to 158°F (-40 to 70°C) |
| Accuracy | ±0.45 from -40 to 32°F (±0.25°C from -40 to 0°C) ±0.36 from 32 to 158°F (±0.2°C from 0 to 70°C) |
| Resolution | 0.036°F (0.02°C) |
| Drift | <0.018°F (0.01°C) per year |
| Logger | |
| Operating Range | -40 to 158°F (-40 to 70°C) |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approximately 100' (30.5 m) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logging Rate | 1 second to 18 hours |
| Modes | Logging: Fixed interval (normal, statistics) or burst Memory: Wrap when full or stop when full Start: Immediate, push button, date and time, or next interval Stop: When memory full, push button, date and time, or after a set logging period |
| Time Accuracy | ±1 minute per month 32 to 122°F (0 to 50°C) |
| Full Memory Download Time | Approximately 60 seconds; may take longer the further the device is from the logger |
| Materials | Acetal, silicone gasket, stainless steel screws |
| Battery | Type: 2/3 x AA 3.6 V lithium, user replaceable Life: 2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life |
| Environmental Rating | NEMA 6 and IP67 |
| Dimensions | 4.25 x 2.0 x 0.88" (10.8 x 5.08 x 2.24 cm) |
| Weight | 2.66 oz (75.5 g) |
| Temperature Sensor | |
| Range | -40 to 158°F (-40 to 70°C) |
| Accuracy | ±0.45 from -40 to 32°F (±0.25°C from -40 to 0°C) ±0.36 from 32 to 158°F (±0.2°C from 0 to 70°C) |
| Resolution | 0.036°F (0.02°C) |
| Drift | <0.018°F (0.01°C) per year |
| Logger | |
| Operating Range | -40 to 158°F (-40 to 70°C) |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approximately 100' (30.5 m) line-of-sight |
| Wireless Data Standard | Bluetooth Low Energy (Bluetooth Smart) |
| Logging Rate | 1 second to 18 hours |
| Modes | Logging: Fixed interval (normal, statistics) or burst Memory: Wrap when full or stop when full Start: Immediate, push button, date and time, or next interval Stop: When memory full, push button, date and time, or after a set logging period |
| Time Accuracy | ±1 minute per month 32 to 122°F (0 to 50°C) |
| Full Memory Download Time | Approximately 60 seconds; may take longer the further the device is from the logger |
| Materials | Acetal, silicone gasket, stainless steel screws |
| Battery | Type: 2/3 x AA 3.6 V lithium, user replaceable Life: 2 years, typical with logging interval of 1 minute and Bluetooth Always On enabled; 5 years, typical with logging interval of 1 minute and Bluetooth Always On disabled. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life |
| Environmental Rating | NEMA 6 and IP67 |
| Dimensions | 4.25 x 2.0 x 0.88" (10.8 x 5.08 x 2.24 cm) |
| Weight | 2.66 oz (75.5 g) |
