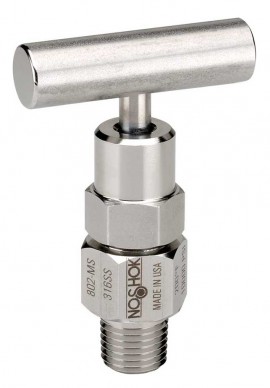

NOSHOK 802-MS Hard Seat Bleed Needle Valve, Male/Stainless Steel, ¼" NPT

Model: 802-MS

Be the first to review this product

$NOSHOK 802-MS Hard Seat Bleed Needle Valve, Male/Stainless Steel, &frac14;&quot; NPT-$

Downloads: datasheet

More NOSHOK Products

Ask an Expert

NOSHOK 802-MS Hard Seat Bleed Needle Valve, Male/Stainless Steel, ¼" NPT

Model: 802-MS

Be the first to review this product

The hard seat bleed needle valve provides a convenient means to relieve process pressures trapped between a shut-off valve and the instrument. It uses bonnet assemblies with an integrated single-threaded body for insertion in vent port. It comes in electropolished stainless steel.

Your Price	$75.00 CAD
Availability	2 to 3 Weeks
Quantity	Quantity

NOSHOK 802-MS Offers

Features

100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability 10,000 psi hard seat pressure rating at 200°F
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
All stem threads are rolled for strength and ease of operation
0.159" bleed port

NOSHOK 802-MS Specifications

Pressure Rating	10,000 psi @ 200°F
Bleed Port	0.159"
Options	Panel mountings, o-ring materials, handles, packings, regulating stem and stem tips
Connection Size	Hard seat ¼" NPT
Valve Type	Male, stainless steel
Material	Electropolished 316 stainless steel
Weight	Approximately 0.4 lb.

Click here for complete specifications on the NOSHOK 802-MS

What's included with the NOSHOK 802-MS

NOSHOK 802-MS Hard Seat Bleed Needle Valve, Male/Stainless Steel, ¼" NPT

datasheet for the NOSHOK 802-MS Hard Seat Bleed Needle Valve, Male/Stainless Steel, ¼" NPT

Ask a question about NOSHOK 802-MS Hard Seat Bleed Needle Valve, Male/Stainless Steel, ¼" NPT

Customer Reviews for the NOSHOK 802-MS

Description ➕➖

NOSHOK 802-MS Offers

Features

100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability 10,000 psi hard seat pressure rating at 200°F
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
All stem threads are rolled for strength and ease of operation
0.159" bleed port

Specifications ➕➖

NOSHOK 802-MS Specifications

Pressure Rating	10,000 psi @ 200°F
Bleed Port	0.159"
Options	Panel mountings, o-ring materials, handles, packings, regulating stem and stem tips
Connection Size	Hard seat ¼" NPT
Valve Type	Male, stainless steel
Material	Electropolished 316 stainless steel
Weight	Approximately 0.4 lb.
