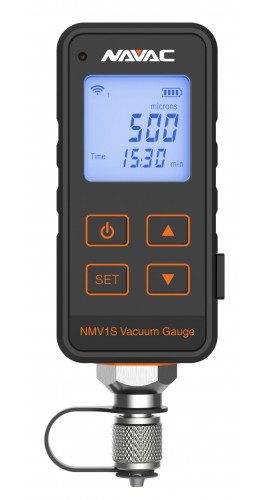

NAVAC NMV1S Premium Micron Vacuum Gauge

Model: NMV1S | UPC: 811245031540

NAVAC NMV1S Premium Micron Vacuum Gauge-

Image is for reference only, refer to product info for complete details.


Downloads: datasheet manual

NAVAC NMV1S Premium Micron Vacuum Gauge

Model: NMV1S | UPC: 811245031540

NAVAC NMV1S Premium Micron Vacuum Gauge uses a Pirani high-precision vacuum sensor to accurately measure vacuum levels.

NAVAC NMV1S Premium Micron Vacuum Gauge uses a Pirani high-precision vacuum sensor to accurately measure vacuum levels.

Sale Price $299.86 CAD
Regular Price $440.00 CAD
Availability 16 in Stock
Quantity

NAVAC NMV1S Offers

A large backlit digital display provides a comprehensive view of vacuum conditions. It features a rechargeable battery and compact design. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level increases from the decay target, it will buzz rapidly and flash the backlight to warn about leaks.

Features

  • Pirani vacuum sensor, professional grade, precise
  • Rechargeable battery with long life
  • Large easy-to-read backlit digital display with auto power off
  • High-pressure protection, 500 PSI max
  • Buzzing alert - vacuum level reminder, leakage warning, decay target and duration
  • Compact design, easy to carry, storage bag included

Applications

  • HVAC/R systems
  • Automotive industry
  • Leak detection
  • Refrigeration
  • Industrial processes

NAVAC NMV1S Specifications

Maximum Pressure 500 psi (34.5 bar)
Range 0 to 25000 microns
0 to 3300 Pa
0 to 33.3 mBar
0 to 25 mmHg
Resolution 0.01 micron (<10 microns)
0.01 Pa (<10 Pa)
0.001 mBar
0.001 mmHg
Accuracy 15 to 1000 microns: ±5% of reading at 68°F (20°C)
Operating Temperature 32 to 122°F (0 to 50°C)
Units Pa, mBar, mmHg, Microns
Sensor Pirani sensor
Battery 2000 mAh Li-ion
Weight 6.2 oz (175 g)
Accessory Angled stem, storage bag
Click here for complete specifications on the NAVAC NMV1S

What's included with the NAVAC NMV1S

  • Premium Micron Vacuum Gauge
  • Angled Brass Coupler
  • Carrying Case
  • One-Year Warranty

Ask a question about NAVAC NMV1S Premium Micron Vacuum Gauge

Customer Reviews for the NAVAC NMV1S

NAVAC NMV1S Offers

A large backlit digital display provides a comprehensive view of vacuum conditions. It features a rechargeable battery and compact design. When reaching the preset vacuum level, it will buzz as a reminder. When the vacuum level increases from the decay target, it will buzz rapidly and flash the backlight to warn about leaks.

Features

  • Pirani vacuum sensor, professional grade, precise
  • Rechargeable battery with long life
  • Large easy-to-read backlit digital display with auto power off
  • High-pressure protection, 500 PSI max
  • Buzzing alert - vacuum level reminder, leakage warning, decay target and duration
  • Compact design, easy to carry, storage bag included

Applications

  • HVAC/R systems
  • Automotive industry
  • Leak detection
  • Refrigeration
  • Industrial processes

NAVAC NMV1S Specifications

Maximum Pressure 500 psi (34.5 bar)
Range 0 to 25000 microns
0 to 3300 Pa
0 to 33.3 mBar
0 to 25 mmHg
Resolution 0.01 micron (<10 microns)
0.01 Pa (<10 Pa)
0.001 mBar
0.001 mmHg
Accuracy 15 to 1000 microns: ±5% of reading at 68°F (20°C)
Operating Temperature 32 to 122°F (0 to 50°C)
Units Pa, mBar, mmHg, Microns
Sensor Pirani sensor
Battery 2000 mAh Li-ion
Weight 6.2 oz (175 g)
Accessory Angled stem, storage bag
Click here for complete specifications on the NAVAC NMV1S

What's included with the NAVAC NMV1S

  • Premium Micron Vacuum Gauge
  • Angled Brass Coupler
  • Carrying Case
  • One-Year Warranty

Ask a question about NAVAC NMV1S Premium Micron Vacuum Gauge

Customer Reviews for the NAVAC NMV1S
