Mitutoyo 568-967-10 Digital ABS Borematic Complete Unit Set, 1 to 2" / 25.4 to 50.8 mm

Model: 568-967-10

Be the first to review this product

The digital ABS borematic complete unit set takes measurements easily and quickly. It has titanium-coated measuring pins that give excellent durability and impact resistance. It also features a range of 1 to 2" / 25.4 to 50.8 mm and a 330° rotatable display unit for easy reading at any angle.

Sale Price	$6653.58 CAD
Regular Price	$7692.00 CAD
Availability	1 in Stock
Quantity	Quantity

Mitutoyo 568-967-10 Offers

The digital ABS borematic with interchangeable head set has GO/NG tolerance judgement function.

Features

TiN-coated measuring contact points provide excellent durability and impact resistance and allow the instrument to measure to the bottom of a blind hole
Large LCD digits of 8.5 mm height for error-free reading
330-degree rotatable display unit for easy reading at any angle
The ABSOLUTE linear encoder eliminates over-speed errors
With SPC data output
Setting rings for origin point setting are optional
Can measure deep holes by attaching an optional extension rod
Measurement can be taken closer to the bottom of a blind bore
Supplied in fitted wooden case

Mitutoyo 568-967-10 Specifications

Range	1 to 2" / 25.4 to 50.8 mm
Accuracy	±0,0003"(excluding quantizing error)
Mass	1750 g
Resolution	0.001 mm or 0.00005"/0.001 mm
Measuring Method	Three-point method
Display	LCD
Battery	SR44 (1 pc.)
Battery Life	Approx. 5,000 hours
Inch-Metric	Inch/Metric

Click here for complete specifications on the Mitutoyo 568-967-10

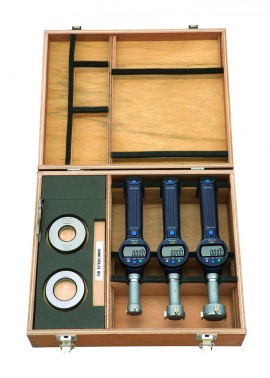

What's included with the Mitutoyo 568-967-10

Display Unit
Borematic Head Assembly, 1 to 1.2"
Borematic Head Assembly, 1.2 to 1.6"
Borematic Head Assembly, 1.6 to 2"
Setting Ring, 1.2"
Setting Ring, 1.6"
Battery
Key
Box
Certificate of Inspection
