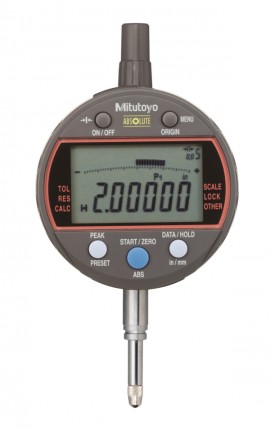

Mitutoyo 543-341B-10 Digital Indicator Calculation ID-C, inch/metric

Model: 543-341B-10

Mitutoyo 543-341B-10 Digital Indicator Calculation ID-C, inch/metric-

More Mitutoyo Products

Ask an Expert

Mitutoyo 543-341B-10 Digital Indicator Calculation ID-C, inch/metric

Model: 543-341B-10

The digital indicator calculation ID-C is used to calculate function for the measured value Ax+B+Cx-1 and comes with 0.5” and a flat back.

The digital indicator calculation ID-C is used to calculate function for the measured value Ax+B+Cx-1 and comes with 0.5” and a flat back.

Sale Price $544.09 CAD
Regular Price $629.00 CAD
Availability 2 to 3 Weeks
Quantity

Mitutoyo 543-341B-10 Offers

The digital indicator calculation ID-C has an easy indicator setup via a setup menu.

Features

  • The integrated calculation formula is useful in a variety of applications (e.g. roll diameter measurement)
  • Coefficients A,B and C are freely definable. X = displacement of the plunger
  • Analogue bar graph in the display (14 different scales switchable)
  • GO/±NG tolerance judgement function
  • MAX/MIN/RANGE function to measure peak values
  • A fast measurement frequency mode(detection cycle 20 ms or 50times/s) is selectable to measure in the peak detection mode more reliably
  • A USB interface box can be used to set up the indicator from PC via dedicated software

Mitutoyo 543-341B-10 Specifications

Range: 0.5"/12.7 mm
Max. Permissible Error of Indication: 0.0001"/0.003 mm
Hysteresis: 0.0001"/0.002 mm
Repeatability: 0.0001"/0.002 mm
Mass: 170 g
Digital Step: 0.00005"/0.001 mm
Scale: Capacitance type, ABSOLUTE linear encoder
Max. Response Speed: Unlimited
Stem ø: 8 mm
Power Supply: 1 battery CR-2032

What's included with the Mitutoyo 543-341B-10

  • Mitutoyo 543-341B-10 Digital Indicator Calculation ID-C, inch/metric
