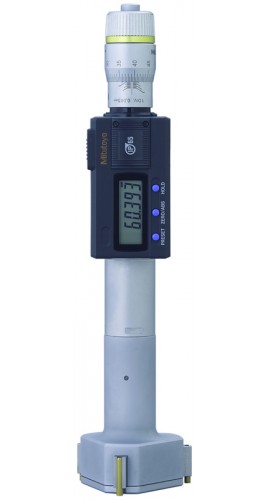

Mitutoyo 468-173 Digital 3-Point Internal Micrometer, 87 to 100 mm

Downloads: datasheet

Features titanium-coated measuring pins that give excellent durability and impact resistance with a range of 87 to 100 mm.

The digital 3-point internal micrometer has an individual micrometer.

Features

They also have excellent resistance against water and dust (IP65 protection level), allowing you to use this product in machining situations that include splashing coolant fluid
Large LCD display with character height of 7.5 mm enables you to read measurements easily
Without setting rings or extensions

Range:	87 to 100 mm
Maximum Permissible Error J MPE:	±4 µm
Digital Step:	0.001 mm
Mass:	970 g
Accuracy:	±3 µm (excluding quantizing error) - full contact of measuring surfaces must be established
Display:	LCD, character height 7.5 mm
Measuring Face:	Titanium-coated hardened steel, taper: tungsten carbide
Power Supply:	1 battery SR-44
Battery Life:	Approx. 1.2 years
Zero/Abs:	Yes
Auto Power Off After 20 min. Non-Use:	Yes
Low Voltage Alarm:	Yes
Function Lock:	Yes
Hold:	Yes
2 x PRESET:	Yes
Data Output:	Yes
