Measure in 0.002 mm increments with this small dial indicator. The compact dial is easy to read and comes with a lug.
Measure in 0.002 mm increments with this small dial indicator. The compact dial is easy to read and comes with a lug.
Discontinued!
This product has been discontinued and is no longer available. There is no direct replacement. Don't worry, we have some options to help you find what you need:
Visit our Dial Indicators category for similar products.
Or let's do a search and help you find what you need:

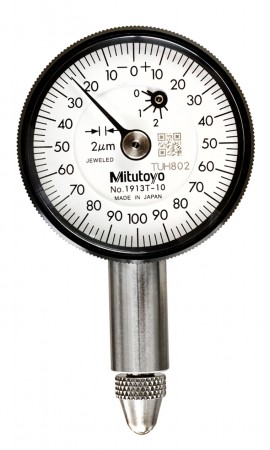

While gauging jigs in tight areas, look to the Mitutoyo 1913T-10 Series 0 Compact Dial Indicator with Lug to make readouts simple. The small dial has a compact bezel diameter and an easy-to-read face that yields measurements in 0.002 mm increments for precision monitoring.
Features
| Supported Measurement Unit(s) | mm |
| Measurement Range | 0 to 0.5 mm; 0.2 mm per revolution |
| Accuracy | ±0.011 mm first 2.5 revolutions; ±0.011 mm overall |
| Dial Reading | 0 to 100 to 0 |
| Dial Color | White |
| Graduation Measurements | Millimeters |
| Supported Measurement Unit(s) | mm |
| Measurement Range | 0 to 0.5 mm; 0.2 mm per revolution |
| Accuracy | ±0.011 mm first 2.5 revolutions; ±0.011 mm overall |
| Dial Reading | 0 to 100 to 0 |
| Dial Color | White |
| Graduation Measurements | Millimeters |
