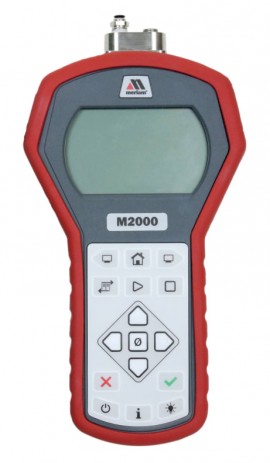

Meriam M2000-CN0015 Industrial Smart Manometer, -14.5 to 15 psi, non-isolated

Meriam M2000-CN0015 Industrial Smart Manometer, -14.5 to 15 psi, non-isolated

Model: M2000-CN0015 | Order No: ZM2000-CN0015

Meriam M2000-CN0015 Industrial Smart Manometer, -14.5 to 15 psi, non-isolated

Model: M2000-CN0015 | Order No: ZM2000-CN0015

The manometer is a portable pressure instrument with flexible features to meet many of your every day pressure measurement needs. It features an easy and intuitive user interface with convenient pressure connections, along with a compound non-isolated pressure range of -14.5 to 15 psi.

The manometer is a portable pressure instrument with flexible features to meet many of your every day pressure measurement needs. It features an easy and intuitive user interface with convenient pressure connections, along with a compound non-isolated pressure range of -14.5 to 15 psi.

Sale Price $1869.00 CAD
Regular Price $2100.00 CAD
Availability 2 to 3 Weeks
Quantity

Meriam M2000-CN0015 Offers

Features

  • Damping to stabilize fluctuating pressure signals
  • 6-digit display resolution
  • MeriSuite CG software lite installed
  • Mobile data logging and computer configuration, calibration and a data logging application (no computer required while taking measurements)
  • One fixed sensor
  • Backlight with four levels: Off, Low, Medium, High
  • Leak test function
  • Battery life display (0 to 100%)
  • USB connection
  • Protective red boot
  • Compound pressure sensor
  • Min/Max pressure capture and hold function

Applications

  • Pressure transmitter calibration
  • Leak testing for low pressure gas systems
  • Pressure drop monitoring across filters
  • Monitoring vacuum on condensers and pumps
  • CPAP and BIPAP testing

Meriam M2000-CN0015 Specifications

Pressure Accuracy ±0.020% full scale + 0.005% of reading
Pressure Range Non-Isolated Compatible with clean, dry, non-corrosive, gas media
-14.5 to 15 psi compound
Measurement Units Offering over 30 measurement units including psi, kPa, mmHg, inH₂O, mbar, and user defined units
Display Resolution Up to 6 digits depending on pressure unit selected
Temperature Specifications Storage: -4 to 158°F (-20 to 70°C)
Operating: 14 to 122°F (-10 to 50°C)
Dimensions 9.8 x 5.2 x 2.3" (248.9 x 132.1 x 58.4 mm) with boot
Connections ⅛" female NPT 316SS USB
Meriam tethered sensor (MTS) port
USB
Power 4 x AA batteries
Click here for complete specifications on the Meriam M2000-CN0015

What's included with the Meriam M2000-CN0015

  • Manometer
  • Calibration Certificate
  • meriSuite CG

Customer Reviews for the Meriam M2000-CN0015

Ask a question about Meriam M2000-CN0015 Industrial Smart Manometer, -14.5 to 15 psi, non-isolated

Meriam M2000-CN0015 Offers

Features

  • Damping to stabilize fluctuating pressure signals
  • 6-digit display resolution
  • MeriSuite CG software lite installed
  • Mobile data logging and computer configuration, calibration and a data logging application (no computer required while taking measurements)
  • One fixed sensor
  • Backlight with four levels: Off, Low, Medium, High
  • Leak test function
  • Battery life display (0 to 100%)
  • USB connection
  • Protective red boot
  • Compound pressure sensor
  • Min/Max pressure capture and hold function

Applications

  • Pressure transmitter calibration
  • Leak testing for low pressure gas systems
  • Pressure drop monitoring across filters
  • Monitoring vacuum on condensers and pumps
  • CPAP and BIPAP testing

Meriam M2000-CN0015 Specifications

Pressure Accuracy ±0.020% full scale + 0.005% of reading
Pressure Range Non-Isolated Compatible with clean, dry, non-corrosive, gas media
-14.5 to 15 psi compound
Measurement Units Offering over 30 measurement units including psi, kPa, mmHg, inH₂O, mbar, and user defined units
Display Resolution Up to 6 digits depending on pressure unit selected
Temperature Specifications Storage: -4 to 158°F (-20 to 70°C)
Operating: 14 to 122°F (-10 to 50°C)
Dimensions 9.8 x 5.2 x 2.3" (248.9 x 132.1 x 58.4 mm) with boot
Connections ⅛" female NPT 316SS USB
Meriam tethered sensor (MTS) port
USB
Power 4 x AA batteries
Click here for complete specifications on the Meriam M2000-CN0015

What's included with the Meriam M2000-CN0015

  • Manometer
  • Calibration Certificate
  • meriSuite CG
