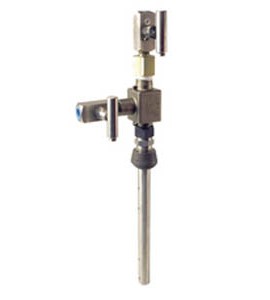

Meriam 23L-0100A-XX-XX Double Mount High Pressure Accutube, 10", 1/2" Probe

Model: 23L-0100A-XX | Order No: 23L-0100A-XX-XX-XX-XX

Meriam 23L-0100A-XX-XX Double Mount High Pressure Accutube, 10", 1/2" Probe-

Downloads:

More Meriam Products

Ask an Expert

Meriam 23L-0100A-XX-XX Double Mount High Pressure Accutube, 10", 1/2" Probe

Model: 23L-0100A-XX | Order No: 23L-0100A-XX-XX-XX-XX

Composed of a 316LSS cast head and probe with double mount support that is ideal for high pressure applications. This 10" insertion type accutube has a probe diameter of 1/2" and is supplied with complete mounting hardware.

Composed of a 316LSS cast head and probe with double mount support that is ideal for high pressure applications. This 10" insertion type accutube has a probe diameter of 1/2" and is supplied with complete mounting hardware.

Sale Price $2315.98 CAD
Regular Price $2693.00 CAD
Availability 2 to 3 Weeks
Quantity

Meriam 23L-0100A-XX Offers

High pressure, insertion type Accutube constructed of a 316LSS cast head and a 316LSS probe. The 23L probe has double-mounted support factory-fitted with 1/2 NPT connections.

Features

  • Impressive accuracy and repeatability
  • Can be used with pipe work or duct work
  • Simple installation and maintenance
  • Bi-directional, high pressure/temperature insertion type flow sensing
  • Low permanent head loss saves energy
  • Multiple tube design offers superior strength and clog resistance
  • Integral 3-Valve head option saves installation piping and transmitter mounting time

Applications

  • Gas
  • Liquid
  • Vapor
  • Steam

Meriam 23L-0100A-XX Specifications

Line Size 10"
Mount Double support
Probe Diameter 1/2"
Body Material 316SS
Repeatability +0.1%
Accuracy 1% of rate accuracy
Pressure 1500 PSIG
Temperature 800°F
Click here for complete specifications on the Meriam 23L-0100A-XX

What's included with the Meriam 23L-0100A-XX

  • Meriam 23L-0100A-XX-XX Double Mount High Pressure Accutube, 10", 1/2" Probe

Ask a question about Meriam 23L-0100A-XX-XX Double Mount High Pressure Accutube, 10", 1/2" Probe

Customer Reviews for the Meriam 23L-0100A-XX

Meriam 23L-0100A-XX Offers

High pressure, insertion type Accutube constructed of a 316LSS cast head and a 316LSS probe. The 23L probe has double-mounted support factory-fitted with 1/2 NPT connections.

Features

  • Impressive accuracy and repeatability
  • Can be used with pipe work or duct work
  • Simple installation and maintenance
  • Bi-directional, high pressure/temperature insertion type flow sensing
  • Low permanent head loss saves energy
  • Multiple tube design offers superior strength and clog resistance
  • Integral 3-Valve head option saves installation piping and transmitter mounting time

Applications

  • Gas
  • Liquid
  • Vapor
  • Steam
Show More...

Meriam 23L-0100A-XX Specifications

Line Size 10"
Mount Double support
Probe Diameter 1/2"
Body Material 316SS
Repeatability +0.1%
Accuracy 1% of rate accuracy
Pressure 1500 PSIG
Temperature 800°F
Click here for complete specifications on the Meriam 23L-0100A-XX

What's included with the Meriam 23L-0100A-XX

  • Meriam 23L-0100A-XX-XX Double Mount High Pressure Accutube, 10", 1/2" Probe

Ask a question about Meriam 23L-0100A-XX-XX Double Mount High Pressure Accutube, 10", 1/2" Probe

Customer Reviews for the Meriam 23L-0100A-XX
