Meriam 21T-0035D-00-XX Double Mount Accutube, 3 1/2", 3/8" Diameter

Model: 21T-0035D-00-XX | Order No: 21T-0035D-00-XX-XX-XX

Be the first to review this product

Meriam 21T-0035D-00-XX Double Mount Accutube, 3 1/2", 3/8" Diameter-

Downloads: datasheet manual

More Meriam Products

Ask an Expert

Meriam 21T-0035D-00-XX Double Mount Accutube, 3 1/2", 3/8" Diameter

Model: 21T-0035D-00-XX | Order No: 21T-0035D-00-XX-XX-XX

Be the first to review this product

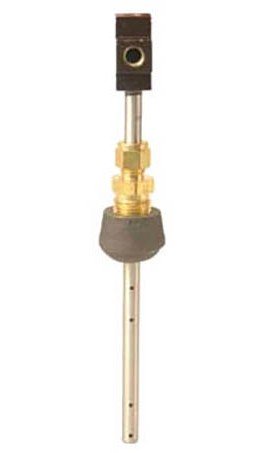

Features stainless steel and brass construction ideal for tough applications. It is double supported and provided in a complete packing gland and two thredolets. Comes in a line size of 3 1/2" and 3/8" probe diameter.

Sale Price	$971.80 CAD
Regular Price	$1130.00 CAD
Availability	2 to 3 Weeks
Quantity	Quantity

Meriam 21T-0035D-00-XX Offers

Features

Insertion type flow sensor
Pressure: 1500 PSIG
Temperature: 800°F
Bi-directional flow sensing
Low permanent head loss saves energy
Multiple tube design offers superior strength and clog resistance
Can be used with pipe work or duct work
Integral 3-Valve head option saves installation piping and transmitter mounting time

Applications

Gas
Steam
Liquid
Vapor

Meriam 21T-0035D-00-XX Specifications

Line Size	3 1/2"
Probe Diameter	3/8"
Body Material	Stainless steel and brass
Repeatability	+0.1%
Accuracy	1% of rate accuracy
Pressure	1500 PSIG
Temperature	800°F

Click here for complete specifications on the Meriam 21T-0035D-00-XX

What's included with the Meriam 21T-0035D-00-XX

Meriam 21T-0035D-00-XX Double Mount Accutube, 3 1/2", 3/8" Diameter

datasheet for the Meriam 21T-0035D-00-XX Double Mount Accutube, 3 1/2", 3/8" Diameter manual for the Meriam 21T-0035D-00-XX Double Mount Accutube, 3 1/2", 3/8" Diameter

Ask a question about Meriam 21T-0035D-00-XX Double Mount Accutube, 3 1/2", 3/8" Diameter

Customer Reviews for the Meriam 21T-0035D-00-XX

Description ➕➖

Meriam 21T-0035D-00-XX Offers

Features

Insertion type flow sensor
Pressure: 1500 PSIG
Temperature: 800°F
Bi-directional flow sensing
Low permanent head loss saves energy
Multiple tube design offers superior strength and clog resistance
Can be used with pipe work or duct work
Integral 3-Valve head option saves installation piping and transmitter mounting time

Applications

Gas
Steam
Liquid
Vapor

Specifications ➕➖

Meriam 21T-0035D-00-XX Specifications

Line Size	3 1/2"
Probe Diameter	3/8"
Body Material	Stainless steel and brass
Repeatability	+0.1%
Accuracy	1% of rate accuracy
Pressure	1500 PSIG
Temperature	800°F
