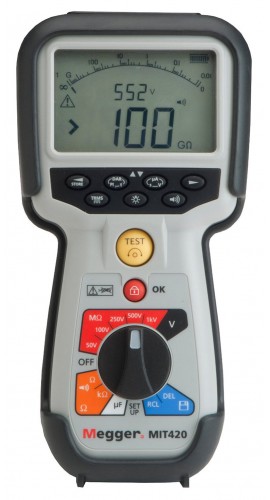

Analog/Digital Insulation Tester - 50/100/250V/500V/1000V + 600V Cat IV + PI & DAR + Result Storage/Recall.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIIN1).
Analog/Digital Insulation Tester - 50/100/250V/500V/1000V + 600V Cat IV + PI & DAR + Result Storage/Recall.
Our rentals come fully calibrated to traceable standards. Have your own instrument? We also offer calibration services for this model (CERTIIN1).
Discontinued!
This product has been discontinued and is no longer available.
There is no direct replacement, however we recommend the:
Not what you're looking for? Let’s do a search and help you find what you need.
This insulation tester features a variable range to allow any intermediate voltage from 10 V to 1000 V in 1 V steps, when testing specific test voltages that do not appear in the standard ranges is required. Continuity testing is now significantly faster, and a single autoranging 0.01 Ω to 1.0 MΩ function replaces the "ohms" and "kOhms" ranges. Retained are the 200 mA and 20 mA test options. The instrument is over-moulded for increased protection and has an IP54 weatherproof rating.
Features
Applications
| Test voltage | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Display range | Analogue: 1 GΩ full scale |
| Resolution | 0.1 kΩ |
| Short circuit/charge current | 2 mA +0% -50% to EN 61557-2 (2007) |
| Open circuit voltage insulation | -0% +2% ± 2V |
| Test current | 1 mA at min. pass value of insulation to a maximum of 2 mA max. |
| Leakage | 10% ±3 digits |
| Voltage | 3% ±3 digits ±0.5% of rated voltage |
| Timer control | 60 second countdown timer |
| Continuity measurement | 0.01 Ω to 999 kΩ (0 to 1000 kΩ on analogue scale) |
| Open circuit voltage | 5 V ± 1 V |
| Test current | 200 mA (–0 mA +20 mA), (0.01 Ω to 4 Ω) |
| Polarity | Single polarity (Default) / Dual polarity (configurable on setup). |
| Lead resistance | Null up to 9.00 Ω |
| Voltage range | AC: 10 mV to 600 V TRMS sinusoidal (15 Hz to 400 Hz) DC: 0 to 600 V |
| Frequency measurement range | 15 Hz - 400 Hz |
| Frequency measurement accuracy | ±0.5% ± 1digit (100 Hz to 400 Hz unspecified) |
| Storage capacity | >1000 test results |
| Power supply | 6 x 1.5 V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP) Alkaline 6 x 1.2 V NiMH rechargeable cells may be used |
| Battery life | 3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 1000 V into 1 MΩ |
| Test voltage | 50 V, 100 V, 250 V, 500 V, 1000 V |
| Display range | Analogue: 1 GΩ full scale |
| Resolution | 0.1 kΩ |
| Short circuit/charge current | 2 mA +0% -50% to EN 61557-2 (2007) |
| Open circuit voltage insulation | -0% +2% ± 2V |
| Test current | 1 mA at min. pass value of insulation to a maximum of 2 mA max. |
| Leakage | 10% ±3 digits |
| Voltage | 3% ±3 digits ±0.5% of rated voltage |
| Timer control | 60 second countdown timer |
| Continuity measurement | 0.01 Ω to 999 kΩ (0 to 1000 kΩ on analogue scale) |
| Open circuit voltage | 5 V ± 1 V |
| Test current | 200 mA (–0 mA +20 mA), (0.01 Ω to 4 Ω) |
| Polarity | Single polarity (Default) / Dual polarity (configurable on setup). |
| Lead resistance | Null up to 9.00 Ω |
| Voltage range | AC: 10 mV to 600 V TRMS sinusoidal (15 Hz to 400 Hz) DC: 0 to 600 V |
| Frequency measurement range | 15 Hz - 400 Hz |
| Frequency measurement accuracy | ±0.5% ± 1digit (100 Hz to 400 Hz unspecified) |
| Storage capacity | >1000 test results |
| Power supply | 6 x 1.5 V cells type IEC LR6 (AA, MN1500, HP7, AM3 R6HP) Alkaline 6 x 1.2 V NiMH rechargeable cells may be used |
| Battery life | 3000 insulation tests with duty cycle of 5 sec ON /55 sec OFF @ 1000 V into 1 MΩ |
