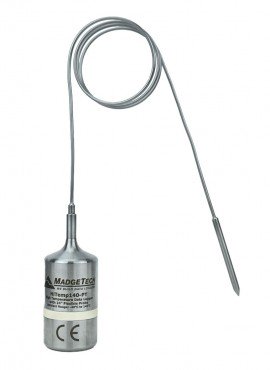

Being able to withstand temperatures from -40 to 284°F (-40 to 140°C), this high temperature data logger comes with a 24" (60.96 cm) bendable probe, a 5" (12.70 cm) piercing tip and a key ring end cap
Being able to withstand temperatures from -40 to 284°F (-40 to 140°C), this high temperature data logger comes with a 24" (60.96 cm) bendable probe, a 5" (12.70 cm) piercing tip and a key ring end cap
The HiTemp140-PT is a submersible, temperature data logger that can operate up to 284°F (140 °C) and has an accuracy of ± 0.18 °F (±0.1 °C). The HiTemp140-PT comes in three different probe lengths, two probe styles feature a 24" bendable stainless steel probe and either a 1" or a 5" piercing tip. The HiTemp140- PT-12 features a 12" bendable stainless steel probe with a 1" piercing tip. All probes can measure extended temperatures up to 662°F (350°C) The probe is durable and can be spiraled, bent or angled in any direction, making it easy to log temperatures within bottles, vials or other hard to reach places. The HiTemp140-PT records date and time stamped readings, and has non-volatile solid state memory which retains data even if the battery becomes discharged.
Using the latest MadgeTech Software, starting, stopping and downloading the HiTemp140-PT is simple and easy. To use, simply place the HiTemp140-PT in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel® for further calculations.
Features
Applications
| Temperature | |
| Temperature Sensor | Flexible RTD Probe |
| Probe Measurement Range | -328 to 662°F (-200 to 350°C) Body of logger cannot exceed 284°F (140°C) |
| Temperature Resolution | 0.02°F (0.01°C) |
| Calibrated Accuracy | ±0.18°F from 68 to 284°F (±0.1°C from 20 to 140°C) ±0.54°F from -4 to 67.98°F (±0.3°C from -20 to 19.99°C) ±0.72°F from -40 to -4.02°F (±0.4°C from -40 to -20.01°C) |
| General Specifications | |
| Start Modes | Software programmable immediate start; delay up to 18 months in advance |
| Stop Modes | Manual or Timed (specific date and time) |
| Real Time Recording | May be used with PC to monitor and record real-time data |
| Password Protection | An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password |
| Memory | 32,512 readings |
| Trigger Settings | High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers |
| Readings in Trigger Settings Mode | 6,502 readings |
| Wrap Around | Yes |
| Reading Rate | 1/second up to 1/24 hours |
| Calibration | Digital calibration via software |
| Calibration Date | Automatically recorded |
| Battery | Type: 3.6V lithium, user-replaceable Life: 2 years typical (1 minute reading rate at 77°F (25 °C) |
| Data Format | Date and time stamped °C, K, °F, or °R |
| Time Accuracy | ±1 minute/month at 68 to 86°F (20 to 30°C) |
| Computer Interface | IFC400 or IFC406 USB docking station required 125,000 baud |
| Operating System Compatibility | Windows XP SP3 or later |
| Software Compatibility | MadgeTech Standard Software v4.1.8.0 or later MadgeTech Secure Software v4.1.7.0 or later |
| Operating Environment | -40 to 284°F (-40 to 140°C) 0 to 100% RH, 0.002 to 100 PSIA |
| Material | 316 Stainless Steel, Radel |
| Approvals | CE |
| Dimensions | Body: 1.9 x 0.97" diameter (48 x 24.6 mm) Probe Tip: 4.8 x 0.125" diameter with 1 x 0.188" diameter handle (121 x 3.2 mm diameter with 25 x 4.8 mm diameter handle) Bendable Portion: 22 x 0.062" diameter (559 x 1.6 mm diameter) |
| Weight | 4.2 oz (120 g) |
Click on a category to view a selection of compatible accessories with the MadgeTech HiTemp140-PT-5-KR High Temperature Data Logger with 24" bendable probe, 5" piercing tip, key ring end cap, 284°F.
