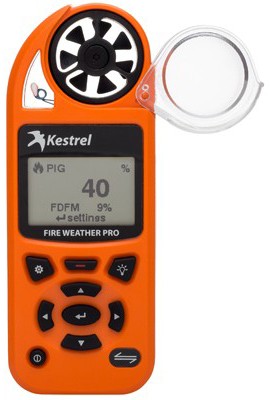

This weather meter offers firefighters all the environmental data they need to make informed decisions. It features a compass, PIG, FDFM and many other environmental measurements, and can be used hand-held or mounted on a tripod.
This weather meter offers firefighters all the environmental data they need to make informed decisions. It features a compass, PIG, FDFM and many other environmental measurements, and can be used hand-held or mounted on a tripod.
The Kestrel 5500 is a complete and portable weather station and meter that is lightweight, handheld, with datalogging capabilities. Measure every environmental condition plus wind direction, crosswind and headwind/tailwind. It is drop-proof, dust-proof, waterproof and able to withstand extreme conditions without damage. This meter logs over 10,000 sets of time-stamped data and it also included a built-in dual color backlight and an extra-strong polycarbonate lens. Improved tripod mount, waterproof datatransfer cable make the Kestrel 5 Series the most user friendly innovative tool ever.
The true versatility of the Kestrel 5500 becomes apparent with the addition of the Kestrel Vane Mount. This precision-engineered accessory securely mounts the Kestrel 5500 to any tripod or other ¼-20 fitted bracket. Once mounted, the Kestrel 5500 becomes a full-featured weather station – with a large wind vane and precision pivot keeping the Kestrel oriented into the wind for continuous measurement and logging of wind speed, wind direction, and all other key weather parameters. The Kestrel LiNK app also displays the Kestrel's real-time readings on a vivid, customizable dashboard – providing a remote display that functions up to 100' away. Providing hundreds of hours of accurate measurements, the Kestrel 5500 is truly the world's most compact weather station.
Kestrels have been put to the test in some of the harshest conditions on the planet. U.S. Special Forces, combat weather teams, wildland firefighters, smoke jumpers, Mt. Everest expeditions and auto pit crews are just a few who rely on a Kestrel to provide them with the crucial environmental data they need. Watch any on-screen meteorologist during a hurricane, and you're sure to spot a Kestrel in action. Be your own meteorologist, anywhere in the world, with a Kestrel 5500.
Features
Applications
Every Kestrel 5 Series meter is drop-tested, wateroproof, dustproof and just as rugged, reliable and dependable.
Sensors | |
Wind Speed/Air Speed | Accuracy: Larger of 3% of reading, least significant digit or 20ft/min Resolution: 0.1 m/s, 1 ft/min, 0.1 km/h, 0.1 mph, 0.1 knots, 1 B, 0.1 F/S Specification range: 0.6 to 40.0 m/s, 118 to 7,874 ft/min, 2.2 to 144.0 km/h, 1.3 to 89.5 mph, 1.2 to 77.8 knots, 0 to 12 B, 2-131.2 |
Ambient Temperature | Accuracy: 0.9°F (0.5°C) Resolution: 0.1°F (0.1°C) Specification range: -20 to 158°F (29 to 70°C) |
Relative Humidity | Accuracy: 2% RH Resolution: 0.1% RH Specification range: 10 to 90% 25°C noncondensing |
Pressure | 1.5 hPa|mbar, 0.044 inHg, 0.022 PSI Resolution: 0.1 hPa|mbar, 0.01 inHg, 0.01 PSI Specification range: 77°F (25°C), 700-1100 hPa|mbar, 20.67 to 32.48 inHg, 10.15 to 15.95 PSI |
Compass | Accuracy:5° Resolution: 1°, 1/16th Cardinal Scale Specification range: 0 to 360° |
Calculated Measurements | |
Air Density | Accuracy: 0.0002 lb/ft3 (0.0033 kg/m3) Resolution: 0.001 lb/ft3 (0.001 kg/m3) Sensors employed: Temperature, Relative, Humidity Pressure |
Air Flow | Accuracy: 6.71% Resolution: 1 cfm, 1 m3/hr, 1 m3/m, 0.1m3/s, 1 L/s Sensors employed: Air Speed,, User Input (Duct, Shape, & Size) |
Altitude | Accuracy: typical: 23.6 ft/7.2 m from 750 to 1100 mBar, max: 48.2 ft/14.7 m from 300 to 750 mBar Resolution: 1 ft/1 m Sensors employed: Pressure, User Input (Reference Pressure) |
Barometric Pressure | Accuracy: 0.07 inHg, 2.4 hPa|mbar, 0.03 PSI Resolution: 0.01 inHg, 0.1 hPa|mbar, 0.01 PSI Sensors employed: Pressure, User Input, (Reference Altitude) |
Weather has a very impactful effect on both starting and sustaining fires. Wind, temperature and humidity are all important factors to take into consideration. The Kestrel Weather Meter 2016 Fire Line includes lifesaving and important features such as Probability of Ignition (PIG) and Fine Dead Fuel Moisture (FDFM) which saves time and ensures consistency of readings between emergency professionals.
Fire fighters need accurate, timely and current situational awareness in order to respond effectively to any fire hazard they face. Weather conditions are unpredictable and can cause a bad situation to get worse if you are not tracking the latest conditions. Wind speed and direction, temperature and humidity are factors fire fighters take into consideration especially when digging firelines.
The Kestrel line now includes a full range of meters and loggers, including models with built-in Probability of Ignition (PIG) and Fine Dead Fuel Moisture (FDFM) readings. Wireless data transfer to smart phones and tablets using Kestrel LiNK™ makes communicating real-time conditions easier than ever. Heat stress prediction models help keep personnel safe when working in extreme hot weather conditions.
Learn MoreHigh and low wind speeds, temperature, humidity and altitude are all important factors to take into consideration when faced with a wild fire. It is important to know the surrounding conditions to understand how a fire is evolving. The new PRO line of Kestrel Fire Weather Meters measures these variables and allows you to communicate with your team detailed data reports using the free Kestrel LINK app. Eliminate errors with these meters by having the National Wildfire Coordinating Group (NWCG) Probability of Ignition (PIG) and Fine Dead Fuel Moisture (FDFM) tables built right in. The PRO models even data log all your readings so you have immediate trend information at your fingertips.
Learn MoreControlled or prescribed burning is an important technique used in forest management and farming to reduce fuel buildup and decrease the likelihood of serious hotter fires. Since future weather is uncertain it’s important to gather all the necessary readings you can to monitor while conducting these burns. Wind speed, wind gust, average wind, temperature and humidity are all measurements you can take with the new Kestrel DROP D3FW Fire Data loggers. These meters can be left on site to record days of round-the-clock temperature and humidity readings and then can be viewed on a mobile device. This allows you to gather adequate weather information on the day before and the day of a burn. Fuel will not burn when wet and will not burn adequately when relative humidity is too high. Fire control becomes difficult when relative humidity is too low. Now you can take the guess work out of these important factors and manage the burn site to ensure that a fire does not get out of control.
Learn MoreDuring the hot summer, risks of heat stress increase exponentially for wildland firefighters when working in extreme conditions. Fire fighters must take into consideration the added impact of wearing heavy Personal Protective Equipment (PPE) on heat stress. Temperature is not the sole indicator of heat stress. You must take into consideration the heat stress in direct sunlight which takes into account temperature, humidity, wind speed, sun angle and cloud cover to give you a reading of how hot it really feels. The Kestrel Fire Weather Meter PRO with WBGT is an all-inclusive weather station with a heat stress indicator to keep fire fighters and emergency personnel safe when working outside. This meter has pre-programmed ACGIH guidelines and alert settings to indicate when conditions have become extremely unsafe which makes it the ultimate tool for safety of your team.
Learn MoreClick on a category to view a selection of compatible accessories with the Kestrel 5500FW Fire Weather Meter Pro, Safety Orange.
Sensors | |
Wind Speed/Air Speed | Accuracy: Larger of 3% of reading, least significant digit or 20ft/min Resolution: 0.1 m/s, 1 ft/min, 0.1 km/h, 0.1 mph, 0.1 knots, 1 B, 0.1 F/S Specification range: 0.6 to 40.0 m/s, 118 to 7,874 ft/min, 2.2 to 144.0 km/h, 1.3 to 89.5 mph, 1.2 to 77.8 knots, 0 to 12 B, 2-131.2 |
Ambient Temperature | Accuracy: 0.9°F (0.5°C) Resolution: 0.1°F (0.1°C) Specification range: -20 to 158°F (29 to 70°C) |
Relative Humidity | Accuracy: 2% RH Resolution: 0.1% RH Specification range: 10 to 90% 25°C noncondensing |
Pressure | 1.5 hPa|mbar, 0.044 inHg, 0.022 PSI Resolution: 0.1 hPa|mbar, 0.01 inHg, 0.01 PSI Specification range: 77°F (25°C), 700-1100 hPa|mbar, 20.67 to 32.48 inHg, 10.15 to 15.95 PSI |
Compass | Accuracy:5° Resolution: 1°, 1/16th Cardinal Scale Specification range: 0 to 360° |
Calculated Measurements | |
Air Density | Accuracy: 0.0002 lb/ft3 (0.0033 kg/m3) Resolution: 0.001 lb/ft3 (0.001 kg/m3) Sensors employed: Temperature, Relative, Humidity Pressure |
Air Flow | Accuracy: 6.71% Resolution: 1 cfm, 1 m3/hr, 1 m3/m, 0.1m3/s, 1 L/s Sensors employed: Air Speed,, User Input (Duct, Shape, & Size) |
Altitude | Accuracy: typical: 23.6 ft/7.2 m from 750 to 1100 mBar, max: 48.2 ft/14.7 m from 300 to 750 mBar Resolution: 1 ft/1 m Sensors employed: Pressure, User Input (Reference Pressure) |
Barometric Pressure | Accuracy: 0.07 inHg, 2.4 hPa|mbar, 0.03 PSI Resolution: 0.01 inHg, 0.1 hPa|mbar, 0.01 PSI Sensors employed: Pressure, User Input, (Reference Altitude) |
Weather has a very impactful effect on both starting and sustaining fires. Wind, temperature and humidity are all important factors to take into consideration. The Kestrel Weather Meter 2016 Fire Line includes lifesaving and important features such as Probability of Ignition (PIG) and Fine Dead Fuel Moisture (FDFM) which saves time and ensures consistency of readings between emergency professionals.
Fire fighters need accurate, timely and current situational awareness in order to respond effectively to any fire hazard they face. Weather conditions are unpredictable and can cause a bad situation to get worse if you are not tracking the latest conditions. Wind speed and direction, temperature and humidity are factors fire fighters take into consideration especially when digging firelines.
The Kestrel line now includes a full range of meters and loggers, including models with built-in Probability of Ignition (PIG) and Fine Dead Fuel Moisture (FDFM) readings. Wireless data transfer to smart phones and tablets using Kestrel LiNK™ makes communicating real-time conditions easier than ever. Heat stress prediction models help keep personnel safe when working in extreme hot weather conditions.
Learn MoreHigh and low wind speeds, temperature, humidity and altitude are all important factors to take into consideration when faced with a wild fire. It is important to know the surrounding conditions to understand how a fire is evolving. The new PRO line of Kestrel Fire Weather Meters measures these variables and allows you to communicate with your team detailed data reports using the free Kestrel LINK app. Eliminate errors with these meters by having the National Wildfire Coordinating Group (NWCG) Probability of Ignition (PIG) and Fine Dead Fuel Moisture (FDFM) tables built right in. The PRO models even data log all your readings so you have immediate trend information at your fingertips.
Learn MoreControlled or prescribed burning is an important technique used in forest management and farming to reduce fuel buildup and decrease the likelihood of serious hotter fires. Since future weather is uncertain it’s important to gather all the necessary readings you can to monitor while conducting these burns. Wind speed, wind gust, average wind, temperature and humidity are all measurements you can take with the new Kestrel DROP D3FW Fire Data loggers. These meters can be left on site to record days of round-the-clock temperature and humidity readings and then can be viewed on a mobile device. This allows you to gather adequate weather information on the day before and the day of a burn. Fuel will not burn when wet and will not burn adequately when relative humidity is too high. Fire control becomes difficult when relative humidity is too low. Now you can take the guess work out of these important factors and manage the burn site to ensure that a fire does not get out of control.
Learn MoreDuring the hot summer, risks of heat stress increase exponentially for wildland firefighters when working in extreme conditions. Fire fighters must take into consideration the added impact of wearing heavy Personal Protective Equipment (PPE) on heat stress. Temperature is not the sole indicator of heat stress. You must take into consideration the heat stress in direct sunlight which takes into account temperature, humidity, wind speed, sun angle and cloud cover to give you a reading of how hot it really feels. The Kestrel Fire Weather Meter PRO with WBGT is an all-inclusive weather station with a heat stress indicator to keep fire fighters and emergency personnel safe when working outside. This meter has pre-programmed ACGIH guidelines and alert settings to indicate when conditions have become extremely unsafe which makes it the ultimate tool for safety of your team.
Learn MoreClick on a category to view a selection of compatible accessories with the Kestrel 5500FW Fire Weather Meter Pro, Safety Orange.
