Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V

Model: 515 | Order No: KANE515

Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V-

Downloads: datasheet manual

More Kane Products

Ask an Expert

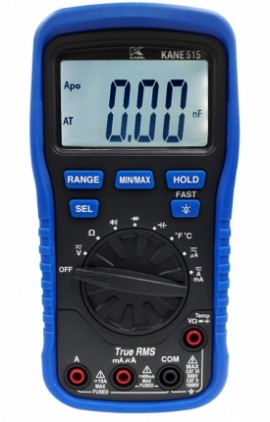

Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V

Model: 515 | Order No: KANE515

Ideal for HVAC/R professionals, this digital multimeter features a range of up to 1000 V and a large backlit display. Compact and rugged, this multimeter comes complete with a rubber boot with kickstand and test lead holders.

Ideal for HVAC/R professionals, this digital multimeter features a range of up to 1000 V and a large backlit display. Compact and rugged, this multimeter comes complete with a rubber boot with kickstand and test lead holders.

Sale Price $274.35 CAD
Regular Price $279.95 CAD
Availability 4 Days
Quantity

Kane 515 Offers

Ideal for current loads, this multimeter effortlessly measures electrical loads and circuit breakers.

Features

  • Auto ranging
  • Auto power off
  • Minimum/maximum
  • Hold
  • 1 ms Fast response minimum/maximum
  • 6' drop protection
  • IP42 ingress protection
  • Low battery indicator
  • Rubber boot with kick stand
  • Test lead holders
  • High resolution backlit display
  • Fused test lead inputs

Functions

  • True RMS
  • 1000 V AC/DC
  • 10 A AC/DC
  • Resistance 40 MΩ
  • Diode test
  • Audible continuity
  • Capacitance 9999 μF
  • Temperature -49 to 1112°F (-45 to 600°C)
  • Microamps
  • Milliamps

Applications

  • Current measurements
  • Measure electrical loads
  • Motor or line current
  • Measure circuit breakers
  • Circuit continuity or specified resistance
  • Control voltage or system board voltage checks
  • Diode test malfunction/ unbroken paths
  • Ambient or surface temperatures

Kane 515 Specifications

AC Volts Ranges: 6 mV to 1000 V
Accuracy: 45 to 500 Hz: ±(1.0% +3 digits), 500 to 1 Hz: ±(2.0% +3 digits)
Resolution: 0.1 mV to 1 V
Overload protection: 1000 V
Minimum sensitivity: 0.5 V AC (auto selection mode)
ACmV Ranges: 6 mV
Accuracy: ±(1.0% +3 digits), ±(2.0% +3 digits)
Resolution: 0.1 mV
Overload protection: 1000 V
DC Volts Ranges: 6 mV to 1000 V
Accuracy: ±(1.0% +3 digits), ±(2.0% +3 digits)
Resolution: 0.1 mV to 1 V
Overload protection: 1000 V
DCmV Ranges: 6 mV
Accuracy: ±(1.0% +3 digits), ±(2.0% +3 digits)

Resolution: 0.1 mV
Overload protection: 1000 V
Temperature Operating: 32 to 122°F (0 to 50°C)
Storage: -44 to 122°F (-20 to 50°C)
Operating Humidity <75% maximum
Operating Altitude 6561' (2000 m)
Display 6000
Backlight Yes
Over-range "OL" is displayed
CAT Rating CAT III 600V/CAT II 1000V
Certifications cETLus UL 61010-1:2012 3rd
CE EN 61010-1:2010 3rd, IEC61010-2-033:2012 Ed.1, EN 61326-1:2013
FCC, RoHS Compliant, TÜV protection, IP 42. 6’ drop protection
Dimenions 6.50 x 3.31 x 2.28" (16.51 x 8.40 x 5.79 cm)
Weight 15.2 oz (430 g)
Click here for complete specifications on the Kane 515

What's included with the Kane 515

  • Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V
datasheet for the Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V manual for the Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V

Ask a question about Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V

Customer Reviews for the Kane 515

Kane 515 Offers

Ideal for current loads, this multimeter effortlessly measures electrical loads and circuit breakers.

Features

  • Auto ranging
  • Auto power off
  • Minimum/maximum
  • Hold
  • 1 ms Fast response minimum/maximum
  • 6' drop protection
  • IP42 ingress protection
  • Low battery indicator
  • Rubber boot with kick stand
  • Test lead holders
  • High resolution backlit display
  • Fused test lead inputs

Functions

  • True RMS
  • 1000 V AC/DC
  • 10 A AC/DC
  • Resistance 40 MΩ
  • Diode test
  • Audible continuity
  • Capacitance 9999 μF
  • Temperature -49 to 1112°F (-45 to 600°C)
  • Microamps
  • Milliamps

Applications

  • Current measurements
  • Measure electrical loads
  • Motor or line current
  • Measure circuit breakers
  • Circuit continuity or specified resistance
  • Control voltage or system board voltage checks
  • Diode test malfunction/ unbroken paths
  • Ambient or surface temperatures
Show More...

Kane 515 Specifications

AC Volts Ranges: 6 mV to 1000 V
Accuracy: 45 to 500 Hz: ±(1.0% +3 digits), 500 to 1 Hz: ±(2.0% +3 digits)
Resolution: 0.1 mV to 1 V
Overload protection: 1000 V
Minimum sensitivity: 0.5 V AC (auto selection mode)
ACmV Ranges: 6 mV
Accuracy: ±(1.0% +3 digits), ±(2.0% +3 digits)
Resolution: 0.1 mV
Overload protection: 1000 V
DC Volts Ranges: 6 mV to 1000 V
Accuracy: ±(1.0% +3 digits), ±(2.0% +3 digits)
Resolution: 0.1 mV to 1 V
Overload protection: 1000 V
DCmV Ranges: 6 mV
Accuracy: ±(1.0% +3 digits), ±(2.0% +3 digits)

Resolution: 0.1 mV
Overload protection: 1000 V
Temperature Operating: 32 to 122°F (0 to 50°C)
Storage: -44 to 122°F (-20 to 50°C)
Operating Humidity <75% maximum
Operating Altitude 6561' (2000 m)
Display 6000
Backlight Yes
Over-range "OL" is displayed
CAT Rating CAT III 600V/CAT II 1000V
Certifications cETLus UL 61010-1:2012 3rd
CE EN 61010-1:2010 3rd, IEC61010-2-033:2012 Ed.1, EN 61326-1:2013
FCC, RoHS Compliant, TÜV protection, IP 42. 6’ drop protection
Dimenions 6.50 x 3.31 x 2.28" (16.51 x 8.40 x 5.79 cm)
Weight 15.2 oz (430 g)
Click here for complete specifications on the Kane 515

What's included with the Kane 515

  • Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V
datasheet for the Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V manual for the Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V

Ask a question about Kane KANE515 True RMS Digital Multimeter with temperature, 1000 V

Customer Reviews for the Kane 515
