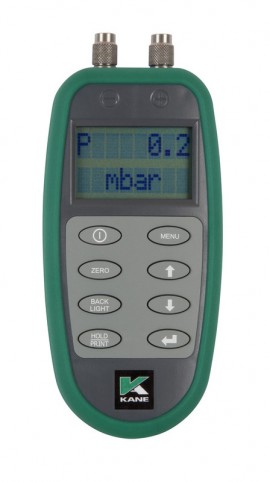

Kane Kane3500-2 Digital Logging Manometer, 2 PSI

Model: Kane3500-2

Be the first to review this product

Kane Kane3500-2 Digital Logging Manometer, 2 PSI-

Downloads: datasheet

More Kane Products

Ask an Expert

Kane Kane3500-2 Digital Logging Manometer, 2 PSI

Model: Kane3500-2

Be the first to review this product

High accuracy differential pressure meter with pressure of ±2 psi / 160 mbar.

Sale Price	$636.95 CAD
Regular Price	$649.95 CAD
Availability	2 to 3 Weeks
Quantity	Quantity

Traceable Calibration Certificate for your Kane Kane3500-2 Digital Logging Manometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 CAD

Traceable Calibration Certificate for your Kane Kane3500-2 Digital Logging Manometer

Yes, I would like to add a Traceable Calibration Certificate (Model CERTIPG2) for only $225.00 CAD

Kane Kane3500-2 Offers

All KANE3500 models are temperature compensated to minimize the "drift" in readings which can occur when electronic manometers are subject to temperature changes, e.g. when taken from a cold van into a warm building.

Features

Temperature compensated for superior accuracy
Switchable between high and low resolution
Switchable between: mbar, Pa, hPa, kPa, mmHg, mmH2O, inH2O and PSI
Data hold and max/min recording
Automated Tightness Testing
Optional Wireless Upgrade
Printouts include date/time and user details
Send printout data to your mobile device using FREE Kane printer app
High/low resolution and smoothing features

Applications

Suitable for difficult applications such as flue draft measurement & measuring differential pressure of gas/air ratio valves on high efficiency boilers.

Kane Kane3500-2 Specifications

Nominal Pressure Range	± 160 mbar
Measured Range	± 0.2 mbar / ± 19.999 mbar / ± 160 mbar
Resolution	0.003 mbar / 0.003 mbar / 0.01 mbar
Accuracy	± 0.02 mbar / ± 0.05 mbar /± 8% of Reading
Ambient Operating Range	0 to 45°C 10 to 90% RH Non-Condensing
Power Supply	9 Volt PP3 Alkaline Battery

Click here for complete specifications on the Kane Kane3500-2

What's included with the Kane Kane3500-2

Pressure Meter
Rubber Hose
Battery
Protective Pouch

datasheet for the Kane Kane3500-2 Digital Logging Manometer, 2 PSI

Ask a question about Kane Kane3500-2 Digital Logging Manometer, 2 PSI

Customer Reviews for the Kane Kane3500-2

Description ➕➖

Kane Kane3500-2 Offers

Features

Temperature compensated for superior accuracy
Switchable between high and low resolution
Switchable between: mbar, Pa, hPa, kPa, mmHg, mmH2O, inH2O and PSI
Data hold and max/min recording
Automated Tightness Testing
Optional Wireless Upgrade
Printouts include date/time and user details
Send printout data to your mobile device using FREE Kane printer app
High/low resolution and smoothing features

Applications

Suitable for difficult applications such as flue draft measurement & measuring differential pressure of gas/air ratio valves on high efficiency boilers.

Specifications ➕➖

Kane Kane3500-2 Specifications

Nominal Pressure Range	± 160 mbar
Measured Range	± 0.2 mbar / ± 19.999 mbar / ± 160 mbar
Resolution	0.003 mbar / 0.003 mbar / 0.01 mbar
Accuracy	± 0.02 mbar / ± 0.05 mbar /± 8% of Reading
Ambient Operating Range	0 to 45°C 10 to 90% RH Non-Condensing
Power Supply	9 Volt PP3 Alkaline Battery
