This heating circulator is designed with an integrated drain and an adjustable pressure pump. It is also equipped with an integrated programmer and an analog interface.
This heating circulator is designed with an integrated drain and an adjustable pressure pump. It is also equipped with an integrated programmer and an analog interface.
This product exceeds standard shipping dimensions/weight, as such it does not qualify for free shipping and will be shipped directly from the manufacturer. We will contact you with your shipping costs.

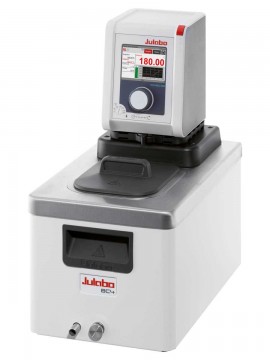

The Julabo DYNEO DD-BC4 Heating Circulator is constructed for a variety of internal and external temperature control applications. It features a 5.8 GPM (22 LP m) pressure pump that can be adjusted to suit your experiment, in addition to a built-in drain that makes it easier to empty liquids from the bath tank. This 230 V circulator is also equipped with an integrated programmer, an analog interface and a 3.5" (8.89 cm) TFT display screen.
Features
| Temperature Range | 68 to 392°F (20 to 200°C) |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.19 gal (4.5 L) |
| Interfaces | Analog, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 16.1" (40.89 cm) |
| Product Width | 9.1" (23.11 cm) |
| Product Height | 16.5" (41.91 cm) |
| Product Weight | 18.7 lbs (8.48 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
| Temperature Range | 68 to 392°F (20 to 200°C) |
| Temperature Stability | ±0.01°C |
| Display Type | TFT |
| Display Size | 3.5" (8.89 cm) |
| Heating Capacity (kW) | 1 |
| Pump Flow Rate | 5.8 GPM (22 LPM) |
| Pump Flow Pressure | 8.7 psi |
| Maximum Viscosity | 50 cSt |
| Pump Connectors | M16x1 |
| Fittings Diameter | 0.31"/0.47" (8 mm/12 mm) |
| Filling Volume | 1.19 gal (4.5 L) |
| Interfaces | Analog, USB |
| Ambient Temperature | 41 to 104°F (5 to 40°C) |
| Tank Material | Stainless steel |
| Product Length | 16.1" (40.89 cm) |
| Product Width | 9.1" (23.11 cm) |
| Product Height | 16.5" (41.91 cm) |
| Product Weight | 18.7 lbs (8.48 kg) |
| Manufacturer Warranty | 2-year limited/10,000-hour operation |
