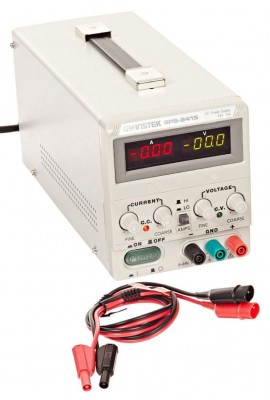

The SPS-Series are single output, 360W, switching DC power supply. OVP protects the SPS-Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. The SPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
The SPS-Series are single output, 360W, switching DC power supply. OVP protects the SPS-Series and their load from unexpected conditions. High regulation is maintained at 0.01%. Remote sensing adds extra level of precision by compensating cable losses between loads. Turning the output On/Off from external device is available through remote control terminals. The SPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
Features
Applications
The SPS-Series are an ideal solution for power-efficient bench-top or portable applications requiring high regulation.
Voltage | 0~24V |
Current | 0~15A |
Line Regulation | ≤5mV |
Load Regulation | ≤5mV |
Ripple & Noise | < 5mVrms, 100mVp-p 20Hz ~ 20MHz |
Recovery Time | < 500μS ( 50% Load change, Minimum load 0.5A ) |
Temp. Coefficient | < 100 ppm/°C |
< 100 ppm/°C/td> | 0 to rating voltage continuously adjustable |
Line Regulation | < 3mA |
Load Regulation | < 3mA |
Ripple Current | ≤10mArms |
Output Range | 0 to rating current continuously adjustable (Hi/Lo range switchable) |
Type | 3 1/2 Digit 0.39" LED Display |
Accuracy | ±( 0.5% of rdg + 2 digits ) |
Chassis and Terminal | 20MΩ or above (DC 500V) |
Chassis and AC Cord | 30MΩ or above (DC 500V) |
Power Source | AC 115V/230V ±15%, 50/60Hz |
Dimensions and Weight | 128(W) x 145(H) x 285(D)mm, Approx. 3.2kg |
Voltage | 0~24V |
Current | 0~15A |
Line Regulation | ≤5mV |
Load Regulation | ≤5mV |
Ripple & Noise | < 5mVrms, 100mVp-p 20Hz ~ 20MHz |
Recovery Time | < 500μS ( 50% Load change, Minimum load 0.5A ) |
Temp. Coefficient | < 100 ppm/°C |
< 100 ppm/°C/td> | 0 to rating voltage continuously adjustable |
Line Regulation | < 3mA |
Load Regulation | < 3mA |
Ripple Current | ≤10mArms |
Output Range | 0 to rating current continuously adjustable (Hi/Lo range switchable) |
Type | 3 1/2 Digit 0.39" LED Display |
Accuracy | ±( 0.5% of rdg + 2 digits ) |
Chassis and Terminal | 20MΩ or above (DC 500V) |
Chassis and AC Cord | 30MΩ or above (DC 500V) |
Power Source | AC 115V/230V ±15%, 50/60Hz |
Dimensions and Weight | 128(W) x 145(H) x 285(D)mm, Approx. 3.2kg |
