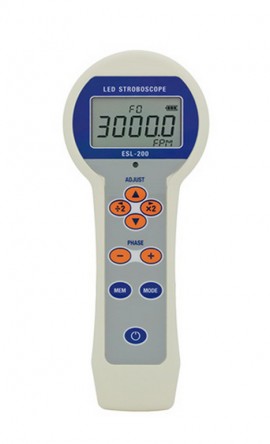

Imada ESL-200 LED Stroboscope and Tachometer

Model: ESL-200

Imada ESL-200 LED Stroboscope and Tachometer-

Downloads: datasheet manual

More IMADA Products

Ask an Expert

Imada ESL-200 LED Stroboscope and Tachometer

Model: ESL-200

Super bright, battery operated, LED stroboscope designed to measure and observe rotating, reciprocating, and linear motion in a variety of production, quality control, and academic applications.

Super bright, battery operated, LED stroboscope designed to measure and observe rotating, reciprocating, and linear motion in a variety of production, quality control, and academic applications.

Sale Price $1078.20 CAD
Regular Price $1198.00 CAD
Availability 2 in Stock
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your ESL-200 LED Stroboscope and Tachometer

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your ESL-200 LED Stroboscope and Tachometer

Imada ESL-200B Offers

Features

  • High efficiency LED solid-state light source
  • Extended battery life of 6 hours continuous use at 6,000 fpm/rpm
  • Pulse Width Modulation for sharp images at high speed
  • Highly stable drift free operation
  • Auto wide measuring range - up to 150,000 fpm/rpm (over 100,000 display flashes)
  • Push button operation with x2 and ÷2 buttons for easy and precise adjustment
  • 359° Digital phase shift adjustment by 1° increments
  • Store up to 9 flash rates in memory for records or quick retests (Restarts at the last flash rate)
  • Rugged aluminum housing compact size weighs only 1.2 lb (540 g)
  • Easy-to-read 5 digit 0.47" (12 mm) high LCD
  • External trigger input and output
  • Tripod mountable

Imada ESL-200B Specifications

Range/Resolution 12.0 to 9999.9 fpm/rpm ±0.1 fpm/rpm
10000 to 150000 fpm/rpm, ±1 fpm/rpm
(over 100,000 display flashes)
Brightness 4300 LUX 6,000 FPM, at 8" distance, flash duration F0
Selectable Units FPM or Hz
Accuracy ±0.01%, ±1 LSD
Power NiMH rechargeable battery
Display 12mm, 5 digit LCD
Phase Shift With external trigger: 0 to 359° in 1° increments
Without external trigger: Image positioning only
Tripod Thread 1/4 - 20 UNC
Operating Temperature 0 to 45°C
Storage Temperature 10 to 50°C
Weight 0.77 lb/350 g
Click here for complete specifications on the IMADA ESL-200

What's included with the IMADA ESL-200

  • LED Stroboscope and Tachometer
  • AC Adapter and Charger
  • Plastic Carrying Case
datasheet for the Imada ESL-200 LED Stroboscope and Tachometer manual for the Imada ESL-200 LED Stroboscope and Tachometer

Ask a question about Imada ESL-200 LED Stroboscope and Tachometer

Customer Reviews for the IMADA ESL-200

Imada ESL-200B Offers

Features

  • High efficiency LED solid-state light source
  • Extended battery life of 6 hours continuous use at 6,000 fpm/rpm
  • Pulse Width Modulation for sharp images at high speed
  • Highly stable drift free operation
  • Auto wide measuring range - up to 150,000 fpm/rpm (over 100,000 display flashes)
  • Push button operation with x2 and ÷2 buttons for easy and precise adjustment
  • 359° Digital phase shift adjustment by 1° increments
  • Store up to 9 flash rates in memory for records or quick retests (Restarts at the last flash rate)
  • Rugged aluminum housing compact size weighs only 1.2 lb (540 g)
  • Easy-to-read 5 digit 0.47" (12 mm) high LCD
  • External trigger input and output
  • Tripod mountable
Show More...

Imada ESL-200B Specifications

Range/Resolution 12.0 to 9999.9 fpm/rpm ±0.1 fpm/rpm
10000 to 150000 fpm/rpm, ±1 fpm/rpm
(over 100,000 display flashes)
Brightness 4300 LUX 6,000 FPM, at 8" distance, flash duration F0
Selectable Units FPM or Hz
Accuracy ±0.01%, ±1 LSD
Power NiMH rechargeable battery
Display 12mm, 5 digit LCD
Phase Shift With external trigger: 0 to 359° in 1° increments
Without external trigger: Image positioning only
Tripod Thread 1/4 - 20 UNC
Operating Temperature 0 to 45°C
Storage Temperature 10 to 50°C
Weight 0.77 lb/350 g
Click here for complete specifications on the IMADA ESL-200

What's included with the IMADA ESL-200

  • LED Stroboscope and Tachometer
  • AC Adapter and Charger
  • Plastic Carrying Case
datasheet for the Imada ESL-200 LED Stroboscope and Tachometer manual for the Imada ESL-200 LED Stroboscope and Tachometer

Ask a question about Imada ESL-200 LED Stroboscope and Tachometer

Customer Reviews for the IMADA ESL-200
