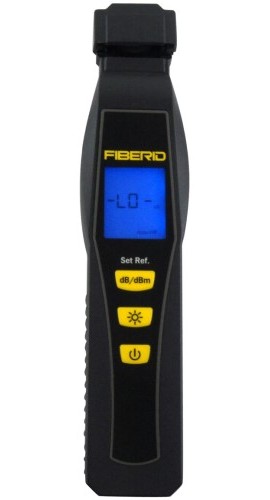

258010 FIBERID Fiber Identifier provides a fast and accurate method of traffic testing and identifying optical signals without having to cut or unplug the cabling and interrupt service. It detects and identifies the propagation direction of a signal in fiber to a -40dBm sensitivity at 1550nm and can also trace an optical tone generated by one of Hobbes' OPTISource series units.
258010 FIBERID Fiber Identifier provides a fast and accurate method of traffic testing and identifying optical signals without having to cut or unplug the cabling and interrupt service. It detects and identifies the propagation direction of a signal in fiber to a -40dBm sensitivity at 1550nm and can also trace an optical tone generated by one of Hobbes' OPTISource series units.
The FIBERID is a valuable and highly effective device to utilize during the installation, troubleshooting, and maintenance of fiber cable systems. It is designed for detecting signals to ensure connections are present in optical fiber systems. This identifier will detect the direction of a signal without the need of accessing the end connection of the optical fiber. It facilitates the troubleshooting process and minimizes interruption of service.
FIBERID simply clamps onto a fiber cable and induces a safe bend allowing a slight leakage of light present on the cable to determine network signal, signal direction, power transmission, and tone recognition. FIBERID is the simplest and safest method for detecting optical signals without splicing, damaging, or interrupting optical signals. It is suitable for both single and multimode cables.
Features
Applications
| Wavelength | 800 to 1700nm |
| Fiber Type | 8 to 10um, 250um, 900um, 2mm and 3mm |
| Display Type | LCD |
| Tone Recognition | 270Hz, 1kHz, and 2kHz |
| Power Range (dBm) | 20 to -40 (1550nm) |
| Power Measuring Repeatability | ±1dB |
| Insertion Loss | <1dB at 1310nm, < 2.5dB at 1550nm |
| Power Measure Unit | dBm, dB |
| Power Supply | 9V battery |
| Wavelength | 800 to 1700nm |
| Fiber Type | 8 to 10um, 250um, 900um, 2mm and 3mm |
| Display Type | LCD |
| Tone Recognition | 270Hz, 1kHz, and 2kHz |
| Power Range (dBm) | 20 to -40 (1550nm) |
| Power Measuring Repeatability | ±1dB |
| Insertion Loss | <1dB at 1310nm, < 2.5dB at 1550nm |
| Power Measure Unit | dBm, dB |
| Power Supply | 9V battery |
