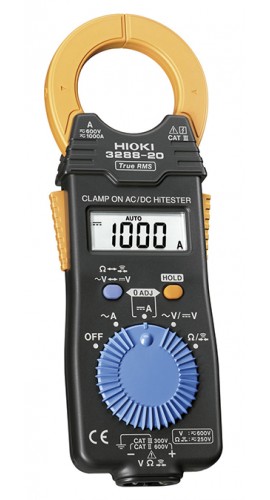

Hioki 3288-20 True RMS AC/DC Clamp Meter, 1000 A, ±1.5%

Model: 3288-20 | UPC: 721352291976

Hioki 3288-20 True RMS AC/DC Clamp Meter, 1000 A, ±1.5%-

Downloads: datasheet manual

More Hioki Products

Ask an Expert

Hioki 3288-20 True RMS AC/DC Clamp Meter, 1000 A, ±1.5%

Model: 3288-20 | UPC: 721352291976

Featuring a 100/1000A AC/DC clamp meter with continuity check and resistance testing capabilities.

Featuring a 100/1000A AC/DC clamp meter with continuity check and resistance testing capabilities.

Sale Price $402.27 CAD
Regular Price $506.00 CAD
Availability 5 to 6 Weeks
Quantity

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 3288-20 True RMS AC/DC Clamp Meter

Traceable Calibration Certificate Icon

Traceable Calibration Certificate for your 3288-20 True RMS AC/DC Clamp Meter

Hioki 3288-20 Offers

Comfortably test crowded wires with this Hioki 3288 Clamp-On AC/DC HiTester, which features a double jaw lever and a slim profile. The meter is capable of measuring AC/DC current from 100 to 1,000A and voltage up to 600V, as well as continuity and resistance.

Features

  • AC/DC current and voltage clamp meter that also measures continuity and resistance
  • Double jaw lever and slim profile allows for easy access to crowded wires
  • True RMS
  • Use it for high current measurements such as UPS emergency batteries and train motors
  • Voltage, resistance, and continuity check functions

Applications

  • Commercial and residential
  • Repair and maintenance
  • Electric vehicle development
  • Inspection of electrical solar power equipment

Hioki 3288-20 Specifications

DC Current 100/1000 A
Basic accuracy: ±1.5% rdg. ±5 dgt.
AC Current 100/1000 A, (10 to 500 Hz, True RMS)
Basic accuracy: ±1.5% rdg. ±5 dgt.
DC Voltage 419.9 mV to 600 V, 5 ranges
Basic accuracy: ±1.3% rdg. ±4 dgt.
AC Voltage 4.199 to 600 V, 4 ranges
Basic accuracy: ±2.3% rdg. ±8 dgt.
(30 to 500 Hz, True RMS)
Resistance 419.9 Ω to 41.99 MΩ, 6 ranges
Basic accuracy: ±2% rdg. ±4 dgt.
Functions Continuity: (50 Ω ±40 Ω) or less buzzer sounds, Data hold, Auto power save, Auto zero (DC A)
Measurement Categories A: CAT III 600V
V: CAT III 300V, CAT II 600V
Power Supply 1 x Coin type lithium battery (CR2032), Continuous use 35 hours
Core Jaw Diameter Ø 1.38" (35 mm)
Dimensions 2.24 x 7.09 x 0.63" (57 x 180 x 16 mm)
Weight 5.3 oz (150 g)
Click here for complete specifications on the Hioki 3288-20

What's included with the Hioki 3288-20

  • Clamp Meter
  • Test Lead
  • Lithium Battery
  • Instruction Manual
  • Carrying Case
datasheet for the Hioki 3288-20 True RMS AC/DC Clamp Meter, 1000 A, ±1.5% manual for the Hioki 3288-20 True RMS AC/DC Clamp Meter, 1000 A, ±1.5%
