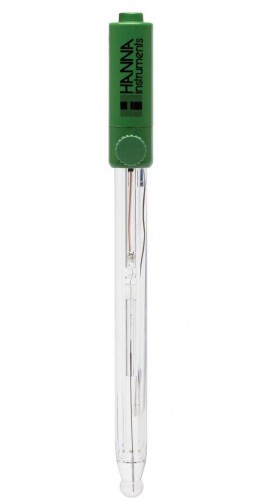

The HI1043B is a glass body, refillable, double junction pH electrode with a BNC connector.
The HI1043B is a glass body, refillable, double junction pH electrode with a BNC connector.
This electrode has a double ceramic junction in the outer reference cell and the pH sensing portion is made with high temperature glass.
This design consideration is ideal for applications involving Tris buffer, hydrocarbons, paints, solvents, high conductivity samples, strong acids and bases, and for measuring samples at elevated temperatures.
Features
Applications
| Body Material | Glass |
| Reference | Double, Ag/AgCl |
| Junction | Ceramic, Double |
| Flow Rate | 30 to 40 µL/h |
| Electrolyte | 3.5M KCl |
| Range | pH: 0 to 14 |
| Max Pressure | 0.1 bar |
| Tip Shape | Spheric (9.5 mm) |
| Diameter | 12 mm |
| Body Length | 120 mm |
| Overall Length | 175.5 mm |
| Recommended Operating Temperature | 0 to 100°C (32 to 212°F) - HT |
| Cable | Coaxial; 1 m (3.3') |
| Connection | BNC |
| Warranty | 6 Months |
| Body Material | Glass |
| Reference | Double, Ag/AgCl |
| Junction | Ceramic, Double |
| Flow Rate | 30 to 40 µL/h |
| Electrolyte | 3.5M KCl |
| Range | pH: 0 to 14 |
| Max Pressure | 0.1 bar |
| Tip Shape | Spheric (9.5 mm) |
| Diameter | 12 mm |
| Body Length | 120 mm |
| Overall Length | 175.5 mm |
| Recommended Operating Temperature | 0 to 100°C (32 to 212°F) - HT |
| Cable | Coaxial; 1 m (3.3') |
| Connection | BNC |
| Warranty | 6 Months |
