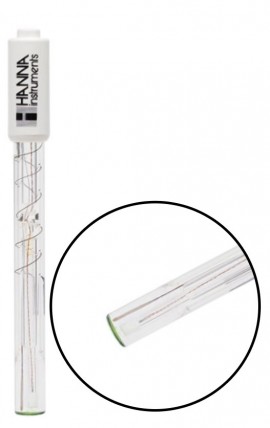

This pH electrode has a glass body and a flat tip. It comes with a quick DIN connector.
This pH electrode has a glass body and a flat tip. It comes with a quick DIN connector.
The Hanna HI 14143 Flat-Tip pH Electrode for Skin and Paper Surfaces can be used with the Hanna HI 99171 pH meter (not included). The electrode features a built-in temperature sensor and an open junction to ensure accurate results. It's designed for measuring leather, paper, skin and other similar surfaces.
Features
| Body | Glass |
| Reference | Single, Ag/AgCl |
| Junction | Open |
| Electrolyte | Viscolene |
| Range | 0 to 12 pH |
| Max Pressure | 0.1 bar |
| Tip | Flat |
| Diameter | 0.5" (12 mm) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Temperature Sensor | Yes |
| Matching Pin | No |
| Amplifier | Yes |
| Cable | 7-pole, 3.3' (1 m) |
| Connection | Quick DIN connection |
| Product Length | 4.3" (110 mm) body; 6" (153.5 mm) overall |
| Manufacturer Warranty | 6 months |
| Body | Glass |
| Reference | Single, Ag/AgCl |
| Junction | Open |
| Electrolyte | Viscolene |
| Range | 0 to 12 pH |
| Max Pressure | 0.1 bar |
| Tip | Flat |
| Diameter | 0.5" (12 mm) |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Temperature Sensor | Yes |
| Matching Pin | No |
| Amplifier | Yes |
| Cable | 7-pole, 3.3' (1 m) |
| Connection | Quick DIN connection |
| Product Length | 4.3" (110 mm) body; 6" (153.5 mm) overall |
| Manufacturer Warranty | 6 months |
