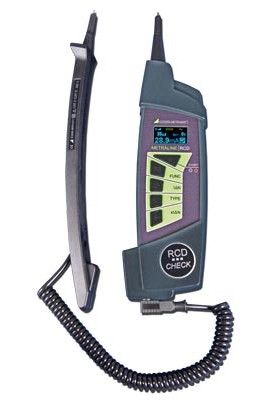

Gossen Metrawatt Metraline RCD-Check Test Instrument, 190-255 V

Model: METRALINE RCDCHECK | Order No: M507B

Gossen Metrawatt Metraline RCD-Check Test Instrument, 190-255 V-

Downloads: datasheet manual

More Gossen Metrawatt Products

Ask an Expert

Gossen Metrawatt Metraline RCD-Check Test Instrument, 190-255 V

Model: METRALINE RCDCHECK | Order No: M507B

This tester measures contact voltage, determining time and tripping current of RCD types A, AC, S and F.

This tester measures contact voltage, determining time and tripping current of RCD types A, AC, S and F.

Sale Price $1100.19 CAD
Regular Price $1209.00 CAD
Availability 2 to 3 Weeks
Quantity

Recommended Accessories

Gossen Metrawatt Z507A Battery Charger, 180 mA-

Gossen Metrawatt Z507A Battery Charger, 180 mA

Z507A

Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4-

Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4

Z507B

Gossen Metrawatt METRALINE RCDCHECK Offers

Measuring instrument which checks the qualities of a FI switch.

Features

  • Digital backlit color OLED display
  • LED for measurement point illumination
  • Patented means of securing the test probes
  • Compact and rugged - for service calls and laboratory use
  • Measurement of touch voltage without tripping the RCCB, Tripping test with nom. residual current, time to trip measurement
  • Testing of equipment and RCDs with rising residual current including indication of tripping current

Gossen Metrawatt METRALINE RCDCHECK Specifications

Operating Temperature 0 to 40°C
Relative Humidity max. 85%, no condensation allowed
Power Supply 4 ea. AAA (LR03), 1.5 V alkaline or 1.2V NIMH (with at least 750 mAh)
Display OLED, multicolored, graphic
Dimensions approx. 260 x 70 x 40 mm
Weight approx. 0.36 kg with batteries
Protection Housing: IP43
Click here for complete specifications on the Gossen Metrawatt METRALINE RCDCHECK

What's included with the Gossen Metrawatt METRALINE RCDCHECK

  • Tester
  • Factory Calibrated Certificate
  • Probes
  • 4 x Batteries
  • CD ROM
  • Operating Instructions
datasheet for the Gossen Metrawatt Metraline RCD-Check Test Instrument, 190-255 V manual for the Gossen Metrawatt Metraline RCD-Check Test Instrument, 190-255 V

Click on a category to view a selection of compatible accessories with the Gossen Metrawatt Metraline RCD-Check Test Instrument, 190-255 V.

Gossen Metrawatt Z507A Battery Charger, 180 mA Z507A
Charger used for the rechargeable batteries of the Metraline Check Series.



Gossen Metrawatt Z507B Rechargeable Batteries, Pack of 4 Z507B
Optional batteries for the Metraline Check Testers.
